CO2 laser cutting / engraving machine | EKO 7

Engraving

Ask for a quote

Presentation

Laser source : water-cooled glass co2 laser tube.

Powers : 40 and with 60 w extension

Standards :

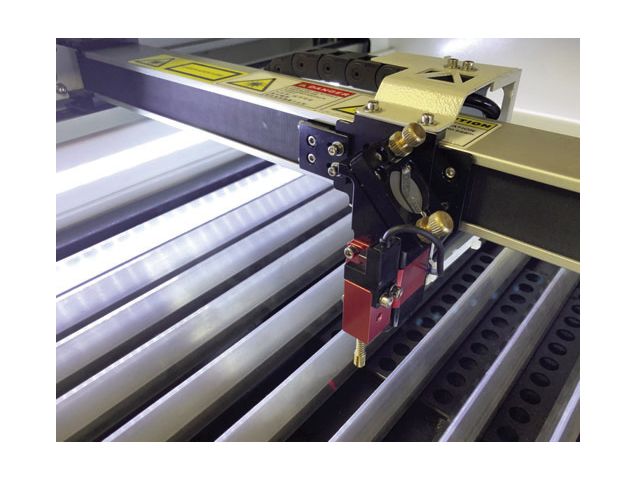

Automatic focusing by mechanical probe.
Red dot pointer to simulate work or define origin point 2" focal lens
Honeycombed cutting table and aluminium slat table to reduce burning marks when cutting
Built-in air assistance and air extractor.
Built-in water cooling unit for the tube.
Digital colour control panel in french / english.

working surface : 700 x 450 mm

Automatic motorized z axis setting : from 0.03 mm to 150 mm maximum.

Maximum part sizes : 700 mm x 450 mm x 150 mm

Working speed : adjustable from 0 to 100 %, 1200 mm / secs, 5g accelerations

Interface : usb and ethernet + usb key for easy transfer

Software : lightburn : cad software in french/english compatible with most graphic programs in windows version (illustrator, coreldraw, inkscape, autocad ...)

Dimensions machine : 1106 x 883 x 543 mm

Safety : cdrh laser : class 1, red dot pointer class 2 , ec norm
