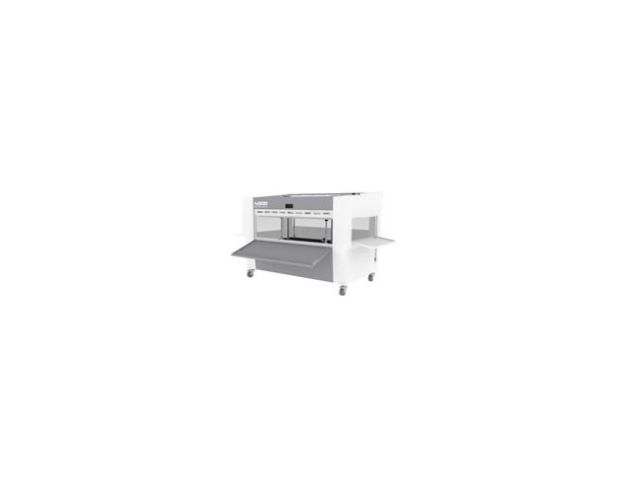

Co2 cutting / engraving laser machine | PRO I 3000

Engraving

Ask for a quote Receive Documentation Contact the supplier

Laser source : US CO2 RF  LASER TUBE IN  30 / 40 / 60 / 80 /100 WATTS, AIR-COOLED

Standards :

Front/back/right/left openable doors to process large sized materials.
Automatic focusing by mechanical probe
Red dot laser pointer to simulate work or define origin point.
Honeycomb table to reduce burning marks white cutting

Working surface : 700 X 500 MM

Automatic motorized z axis setting : from  0.03 mm to 230 mm maximum.

Maximum part sizes : 700 mm x no limit x 230 mm

Working speed : adjustable from  0 to  100 %, 3050 mm / secs - 6 g accelerations

Interface : usb or ethernet (optional)

Software : compatible with most  windows based  cad softwares (illustrator, coreldraw, inkscape, autocad ...)

Sizes- weight : 1150 X 720 X 1064 MM
220 TO 250 kgs according to laser tube power.

Safety standards :

cdrh laser : class 1
red dot pointer class 2
ec norm
