CO2 laser cutting/engraving machine | EKO 16

CO2 laser cutting/engraving machine | EKO 16 - THERMOFLAN SAS

CO2 laser cutting/engraving machine | EKO 16 - Engraving

CO2 laser cutting/engraving machine | EKO 16 - produit présenté par THERMOFLAN SAS

CO2 laser cutting/engraving machine | EKO 16

Engraving

Ask for a quote

Presentation

Laser source : water-cooled glass co2 laser tube, available powers : 80 / 100 /130 / 150 w

Standards :

back/front opening doors to process large sized parts (limit 25 mm thickness)

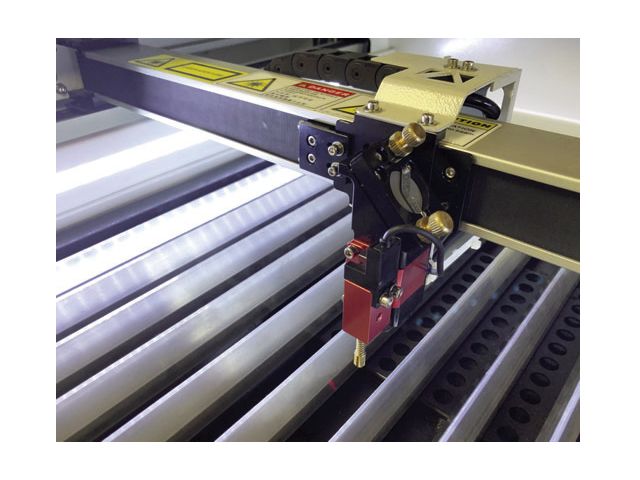

automatic focusing by mechanical probe.
red dot pointer to simulate work or define origin point
2.5" focal lens

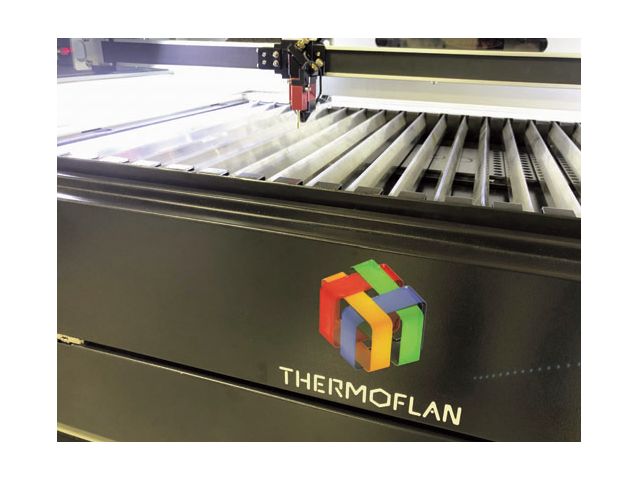

honeycombed cutting table and aluminium slat table to reduce burning marks when cutting
built-in air assistance and air extractor.
built-in water cooling unit for the tube.

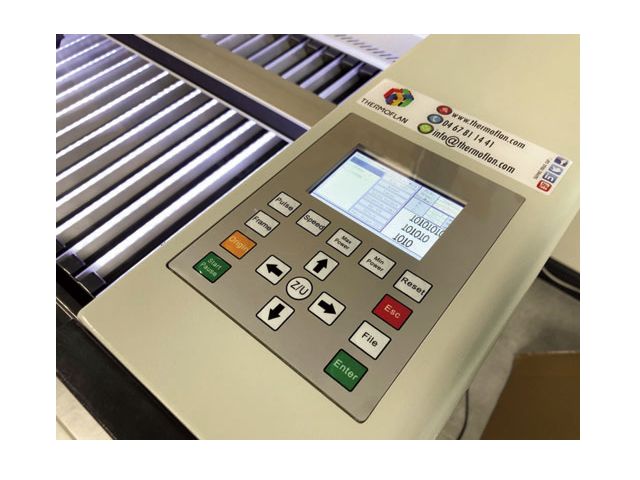

digital colour control panel in french/english.

Working surface : 1600 x 1000 mm

Automatic motorized z axis setting : from 0.03 mm to 200 mm maximum.

Maximum part sizes : 1600 mm x 1000 mm x 200 mm OR 1600 X UNLIMITED X 25 mm

Working speed : adjustable from 0 to 100 %, 1000 mm / secs, 1.8g accelerations

Interface : usb and ethernet + usb key for easy transfer

Software : lightburn : cad software in french/english compatible with most graphic programs in windows version (illustrator, coreldraw, inkscape, autocad ...)

Dimensions machine : 2150 x 1605 x 1025 mm

Safety : cdrh laser : class 1, red dot pointer class 2 , ec norm
