CO2 laser cutting/engraving machine | EKO 14

CO2 laser cutting/engraving machine | EKO 14 - THERMOFLAN SAS

CO2 laser cutting/engraving machine | EKO 14 - Engraving

CO2 laser cutting/engraving machine | EKO 14 - produit présenté par THERMOFLAN SAS

CO2 laser cutting/engraving machine | EKO 14

Engraving

Ask for a quote

Presentation

Laser source : water-cooled glass co2 laser tube, available powers : 80 / 100 /130 / 150 w with extension

Powers : 40 and with 60 w extension

Standards :

back/front opening doors to process large sized parts (limit 25 mm thickness)

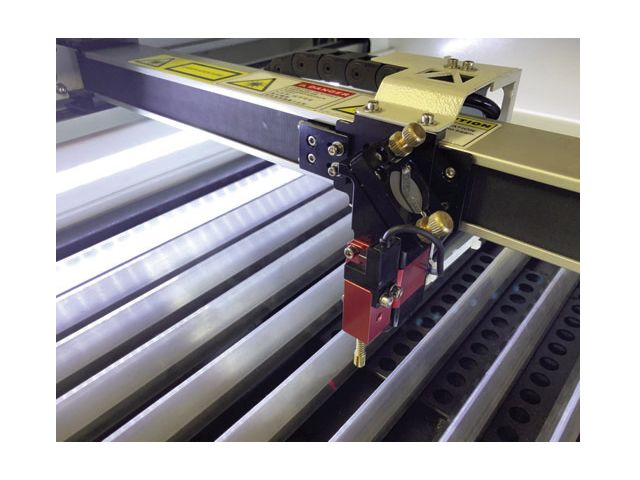

automatic focusing by mechanical probe.
red dot pointer to simulate work or define origin point
2.5" focal lens
honeycombed cutting table and aluminium slat table to reduce burning marks when cutting
built-in air assistance and air extractor.
built-in water cooling unit for the tube.

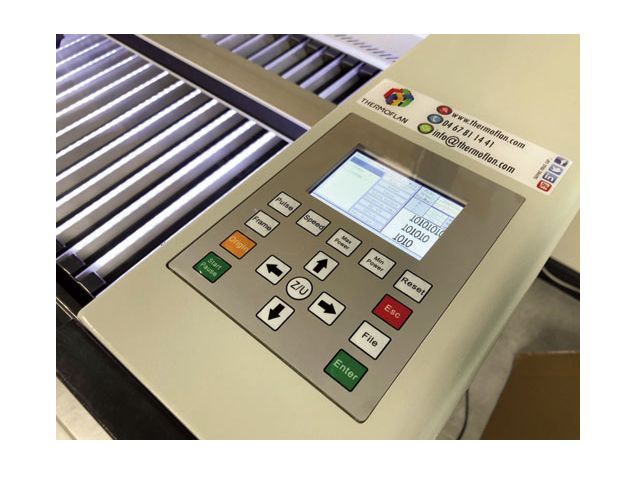

digital colour control panel in french/english.

working surface : 1400 x 900 mm

Automatic motorized z axis setting : from 0.03 mm to 200 mm maximum.

Maximum part sizes : 1400 mm x 900 mm x 200 mm OR 1400 X UNLIMITED X 25 mm

Working speed : adjustable from 0 to 100 %, 1000 mm / secs, 1.8g accelerations

Interface : usb and ethernet + usb key for easy transfer

Software : lightburn : cad software in french/english compatible with most graphic programs in windows version (illustrator, coreldraw, inkscape, autocad ...)

Dimensions machine : 1920 x 1495 x 1025 mm

Safety : cdrh laser : class 1, red dot pointer class 2 , ec norm
