THERMOFLAN SAS

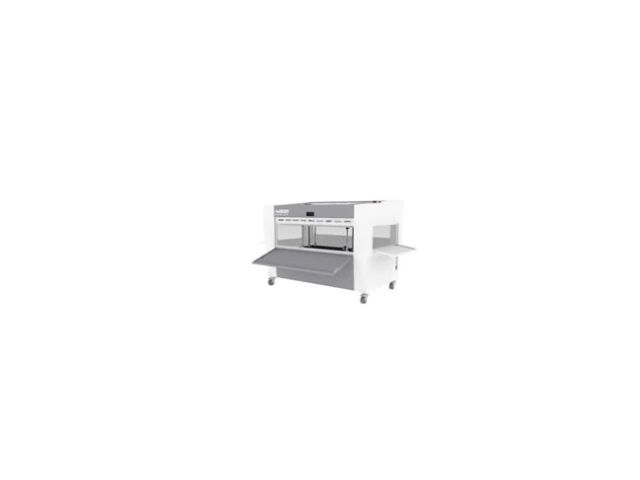

CO2 cutting / engraving laser machine | Pro I 4000

Engraving

Ask for a quote Receive Documentation Contact the supplier


Laser source : US CO2 RF  LASER TUBE IN  30 / 40 / 60 / 80 /100 WATTS, AIR-COOLED

Standards :

Front/back/right/left openable doors to process large sized materials.
Automatic focusing by mechanical probe

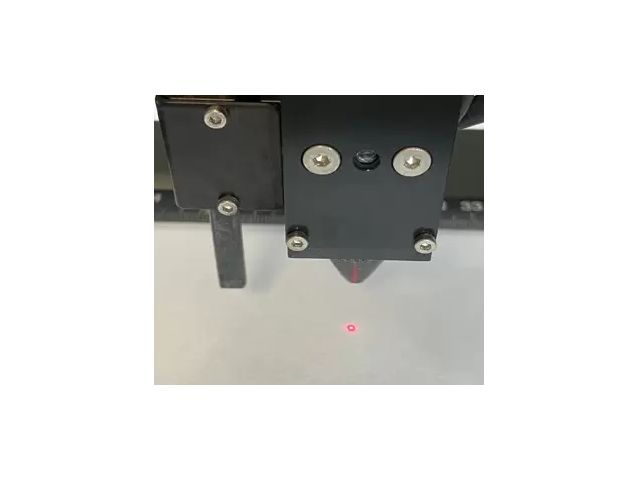

Red dot laser pointer to simulate work or define origin point.
Honeycomb table to reduce burning marks white cutting

Working surface : 1000 X 600 MM

Automatic motorized z axis setting : from  0.03 mm to 230 mm maximum.

Maximum part sizes : 1000 mm x no limit x 230 mm

Working speed : adjustable from  0 to  100 %, 3050 mm / secs - 6 g accelerations

Interface : usb or ethernet (optional)

Software : compatible with most  windows based  cad softwares (illustrator, coreldraw, inkscape, autocad ...)

Sizes- weight : 1450 X 820 X 1064 MM
280 TO 310 kgs according to laser tube power.

Safety standards :

cdrh laser : class 1
red dot pointer class 2
ec norm
