CNC machining centre with 3+1 controlled axes - Phantomatic M3

Machining centre

Ask for a quote

Presentation

CNC machining centre, with 3+1 controlled axes; the spindle has an automatic tool slewing system on 3 fixed positions that allows processing on 3 sides of the workpiece. Designed for machining bars or parts made of aluminium, PVC, light alloys in general or steel up to 2 mm.

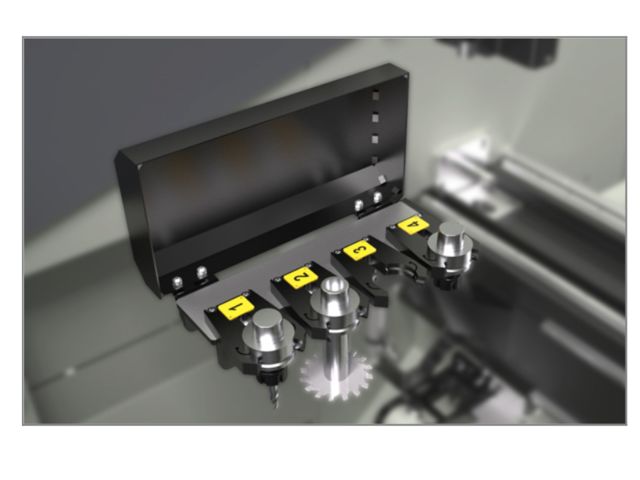

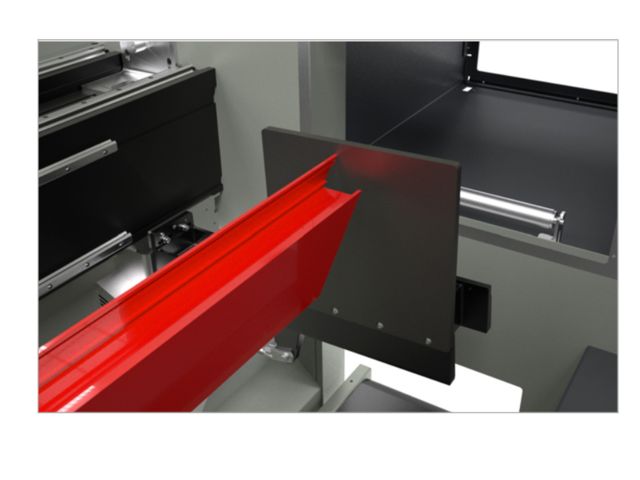

It is provided with a manual tool storage magazine with 9 places to wich one or two additional automatic storage magazines with 4 places can be added at the sides of the machine. The workpieces is positioned by a pneumatic stop positioned at the left side of the machine, and is blocked by 4 strong clamps that are positioned by the slider on the X axis.

Adding a second optional stop on the right side, the machine may perform extended machining of bars up to twice the work capacity. Moreover it is equipped with a movable work plane for easier workpiece loading/unloading; this also allows considerable increase in the machinable section.
