EMMEGI FRANCE

CNC machining centre - Comet R6

Machining centre

Ask for a quote Receive Documentation Contact the supplier

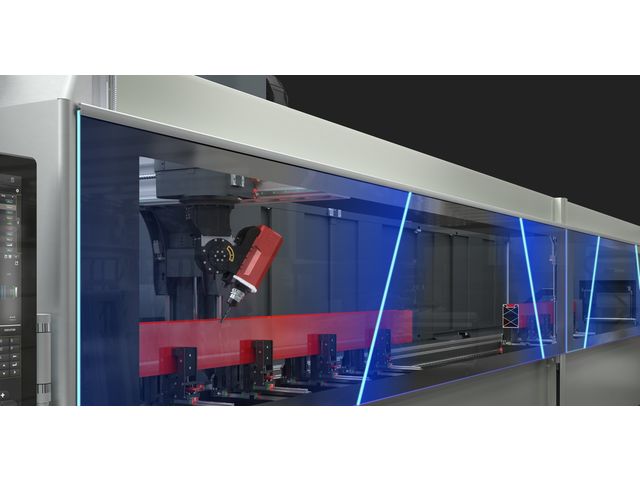

CNC machining centre with 5 controlled axes and 8.5 kW spindle designed for machining bars or workpieces of aluminium, PVC, light alloys in general or steel.It has two modes of operation: either in just one work area for bars up to 7.7 m long or else in two independent work areas in double mode.

The machine has 2 extra axes available for vices and reference stop positioning, enabling the vices to be positioned in concurrent operation time when the machining centre is running in double mode. The 4th and 5 th axis allow the electrospindle to be controlled by the N/C continuously in the range –15° to 90° on the horizontal and 0° to 720° on the vertical axis for machining the top face and all the side faces of the workpiece.

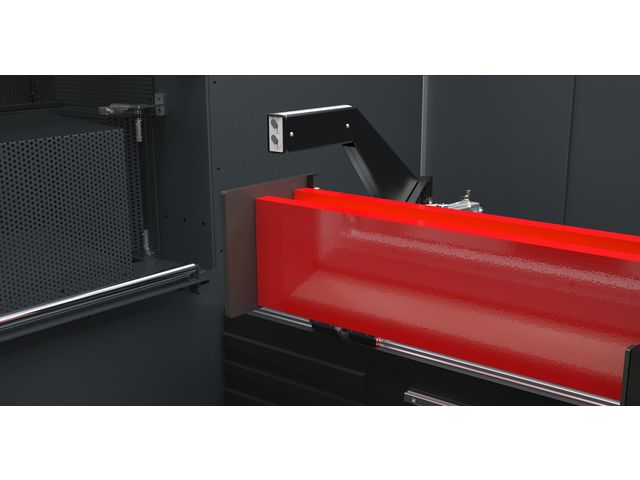

It is equipped with a 12-place tool magazine on board, capable of containing a blade. It also has a mobile work table which makes workpiece loading/unloading easier and increases the working section considerably.
