“ CNC Tube Cut-off Lathe with large spindle bore and dual lathe chuck ”
Ask for a quoteReceive DocumentationContact the supplier
• This machine was designed for use in demanding petroleum industry applications and integrates decades of experience.
• The wide machine bed features large, hardened and ground guideways and high rigidity.
• Machining lengths up to 3000 mm - expandable to 16000 mm upon request.

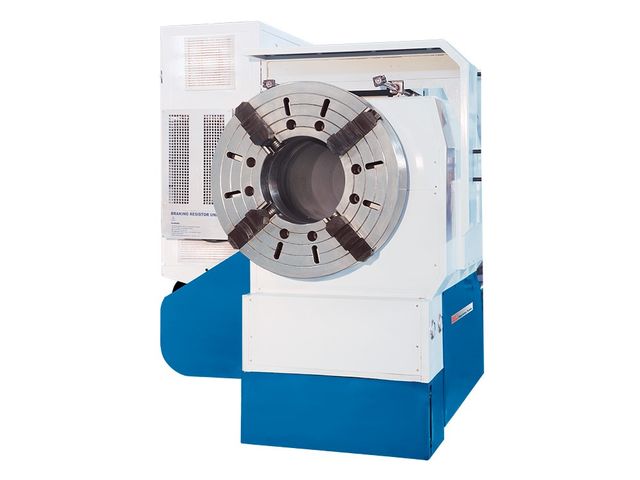

• Massive headstock with main spindle running in tapered roller bearings, and 2 lathe chuck mounts.
• Spindle bore 280 mm (standard) - Up to 630 mm through-bore upon request.
• Fanuc 0i-Mate TD with Manual Guide 0i features advanced control technology and maximum reliability.
• High-torque drives and preloaded ball screws on all axes.
• Automatic 2-step gears with 2 infinitely variable speed ranges.
• Hardened and ground gears for effective power transmission.
• Powerful main drive motor with 18,5 kW rating.
• Heavy-duty 4-station tool holder with automatic tool changing function.
• Including high-performance coolant system, and central lubrication unit.
• Plus free 1-day training in Wasbek.
Standard equipment : Fanuc 0i-Mate TD with manual guide 0i, electronic hand-wheel, two 4-jaw faceplate lathe chucks 720 mm diam, automatic 2-step gears, 4-station tool holder, steady rest 40-350 mm, coolant system, central lubrication, mechanical tailstock, work lamp, steady rest, operating tools, operating manual and programming instructions.
