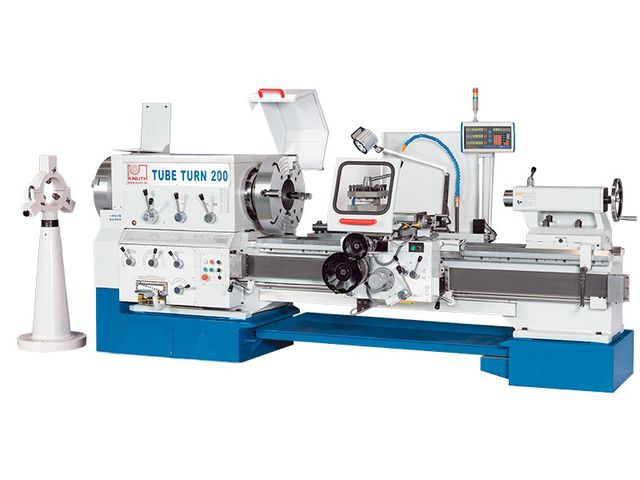

Box-way Lathe : TubeTurn 225

Horizontal towers

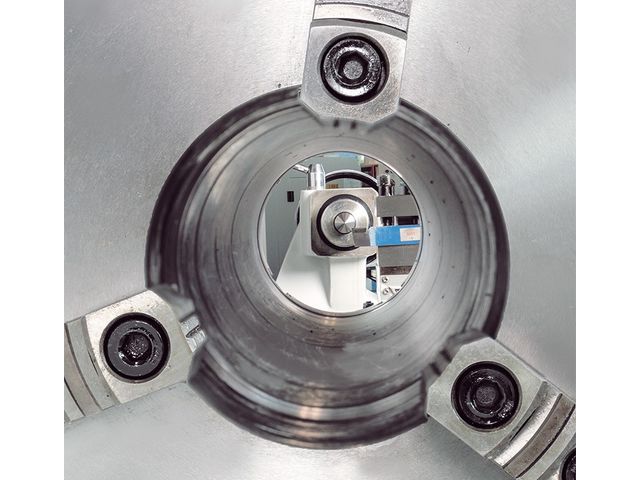

“ Tube Lathe with large spindle bore and dual lathe chuck for long tubes ”

Ask for a quote

Presentation

• Heavy machine bed made of premium cast-iron with hardened and ground guideways.

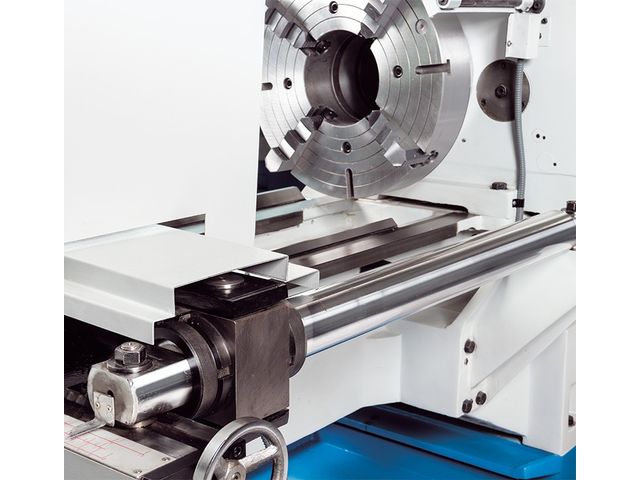

• Massive headstock with high-precision spindle running in tapered roller bearings, and 2 lathe chuck mounts on both sides.
• Gears are hardened and ground.
• High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
• Powerful main drive motor with 7,5 kW power.
• Central, practical controls for feeds and thread leads.
• Wide spectrum of inch and metric threads.
• Heavy-duty 4-station tool holder.
• Coolant system is included.
• Taper turning unit with 500 mm turning length.

3-axis position indicator

• More accuracy.
• Lower error rate.
• Increased productivity.
• Resulting in valuable time savings.
• For increased productivity.
• Easy to read display.
• Operator-specific features.
• Convenient keyboard layout.
• Resolution: 0.01/ 0.005 mm.
• Default coordinates.
• Axis position is maintained when display is turned off.
• Hole circle pattern calculation.
• calculator function.
• Storage for 10 tools.
• Radius / diameter toggle.
• mm/inch conversion.
• Easy expansion and maintenance-free operation.
• Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes.

Standard equipment :
3-axis position indicator, 4-station tool holder, 3-jaw chuck diam 500 mm, 4-jaw face plate chuck diam 520 mm, coolant system, operator manual.
