HEAVY LATHE KAMI DKM 1600.8 D-1 (NEW)

Ask for a quote

Presentation

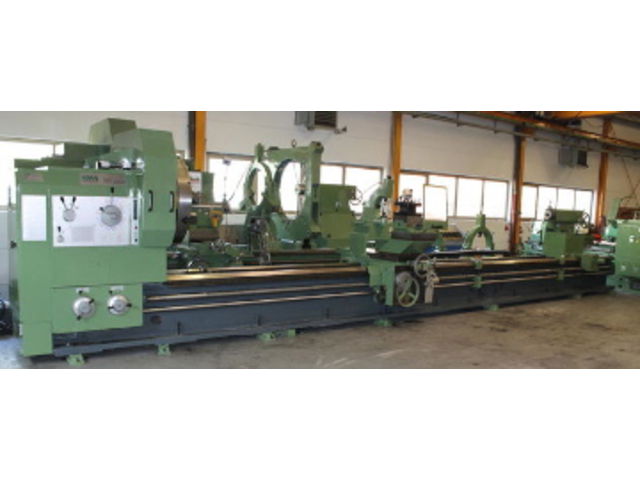

HEAVY LATHE KAMI DKM 1600.8 D-1 (NEW)

Height: 800 mm
Centers: 8000 mm
Turning diameter over bed: 1600 mm
Turning diameter over support 1240 mm
Spindle Bore: 130 mm
Speed ??range: 9-1600 rpm
Spindle nose: A 215/8xM22
Longitudinal feeds range: 0.1 - 12 mm / rev (56 steps)
Area cross feeds: 0.05 - 6 mm / rev (56 steps)
Metric threads: 1 - 120 mm (44 steps)
Inch threads: 28 - 1/4 (31 steps)
Module pitch: 0.5 - 60 mm (45 steps)
Diametral thread: 1/2 - 56 DP (38 Steps)
Quill diameter: 160 mm
Spindle stroke: 300 mm
Taper: Morse taper 6
Motor power: 22 kW
Weight: 19400 Kg
Dimensions: 11100 x 2150 x 2150 mm
Accessories: Digital display for 3-axis, 4-jaw faceplate chuck Ø 1250 mm, fixed + follow rest.
