CNC 5 axes milling machines | NORMAPROFIL - M series

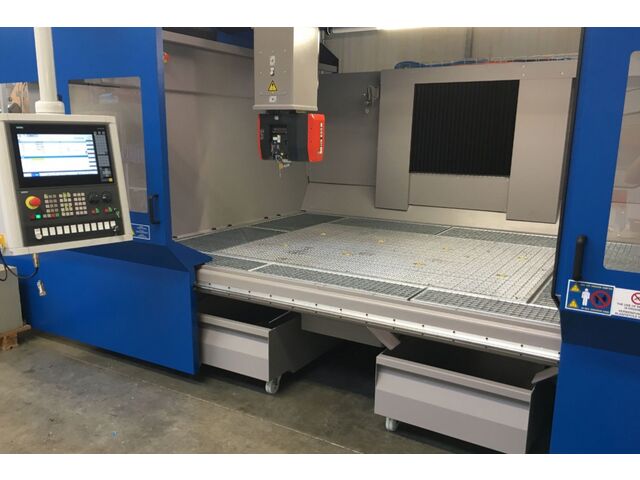

Fixed table, mobile gantry facing the operator.


Realization of models and molds or 5-axis machining of thermoformed, rotational molded parts ...


TECHNOLOGIES

• Transmission by ball screw on the 4 Cartesian axes (X1, X2, Y, Z)
• 2 rotary axes (C: +/- 200 ° and A: +/- 200 ° depending on the electrospindle)

5-axis milling machine optimized for machining the following materials:

• Plastics and composites,
• PU and PS foam etc ...
• Aluminum (depending on the type of spindle),
• Synthetic resins,
• Wood and wood products,
• Brass and alloys (depending on the type of spindle),

SOME OF THE POSSIBLE OPTIONS

• Automatic doors
• Vacuum plate for holding parts or tools (vacuum technology by side channel turbines or by vacuum pump)
• Static tool magazine (6,10,15 tools)
• Magazine mounted under gantry (for M3015 only) 12 tools
• Tool measuring probe
• Sound-absorbing full cover
• Double table system for loading / unloading in masked time (for M3015 only)
• Other useful formats on request

NC and Motorization

• SIEMENS SINUMERIK 840 Di numerical control: X, Y, Z, C, A axes
  STN 10.4 inch OP010 color screen.
  Brushless motorization type 1FK7 with digital variators.
  Air-conditioned electrical cabinet.

• SIEMENS SINUMERIK 840D digital control: X, Y, Z, C, A axes
  STN 10.4 inch OP010 color screen.
  Brushless motorization type 1FT6 with digital drives.
  Air-conditioned electrical cabinet.

• NUM 1050 DIGITAL digital control: X, Y, Z, C, A axes
  12 inch TFT flat screen.
  MP03 operator panel.
  BPH brushless motorization with digital variators.
  Air-conditioned electrical cabinet.
