4 axis CNC machine | MECABOND

High productivity 4 axis multi head milling CNC machine optimized for sign applications and frontages in the building area.

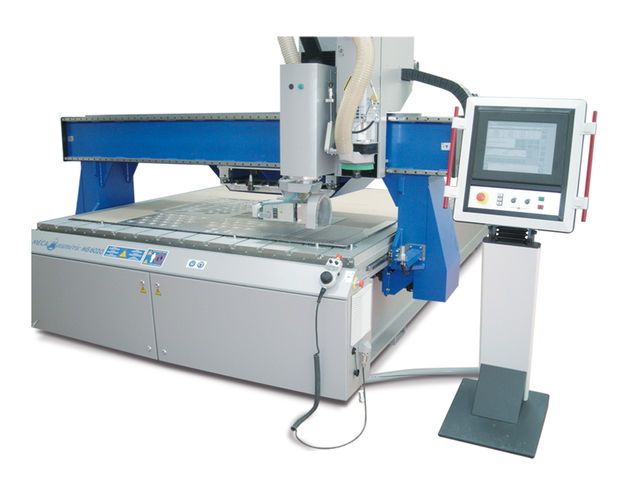

MULTI-SPINDLE CNC 4-AXIS MILLING MACHINE

High productivity system for the rapid cutting of sheet materials in the building (facades), sign or fitting out of commercial vehicles (refrigerated trucks, etc.) sectors.

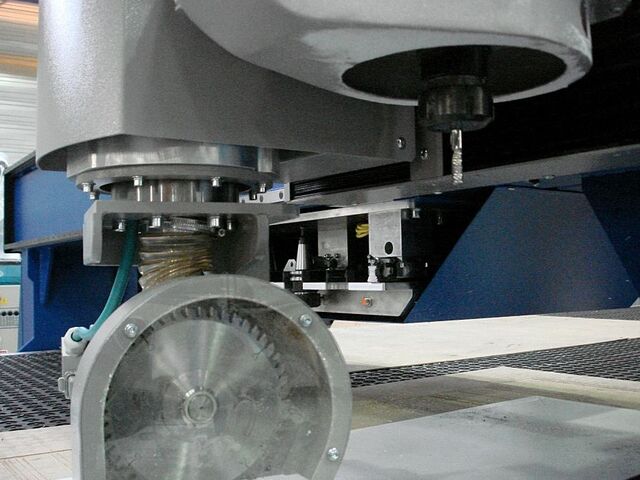

4-axis CNC milling machine that can be equipped with a high-power vertical electrospindle and a horizontal electrospindle that can be rotated 360 degrees.

TECHNOLOGIES

• Kinematic assembly with fixed table and mobile gantry.
• Monobloc frame in mechanically welded steel.
• Mobile gantry in mechanically welded steel.
• Vacuum tray in aluminum profile.
• Support of the plates by the vacuum generated either by lateral channel turbines or by vacuum pumps with nozzles.
• Automatic selection of zones by solenoid valves. Timing stops automatically retractable plates.
• Motorization by AC Brushless servomotors on the 6 axes (X1-X2-Y-Z1-Z2-C).
• Transmission by high precision rack and pinion systems for X and Y axes, ball screw on Z axes, gearbox without play on C axis
• Guides by rectified rails and pre-loaded pads with ball circulation.
• MECANUMERIC CN7000 Digital Control with 15 inch touch screen, integrated hard drive, Ethernet port, USB port. Import of files in ISO code.
• Wide choice of horizontal and vertical electrospindles.

Some of the materials that can be used (depending on the electrospindle and the tool chosen):

• Rigid plate plastics (PMMA-PC-PS-PVC-ABS ..)
• Expanded plastics and cellular sheets
• Rigid foam (PU- PS-…)
• Semi-rigid foams (KAPA line®,…)
• Composite materials for the building industry: Alucobond®, Dibond®, Reynobond®, ..
• Composite materials for industry (polyester resin filled with glass fiber, carbon fiber, etc.)
• Wood and wood products
• Polyester resins
• Light alloys aluminum base or copper base

SOME OF THE POSSIBLE OPTIONS

• Chip extraction by a wide choice of industrial suction groups.
• Different vacuum plates.
• Tool magazine on board (capacity 6 cones) with tool length sensor.
• Tool lubrication system / Tool / material cooling system
• Suction zones with automatic selection controlled by numerical control.
• SIEMENS SINUMERIK® 840 Di digital control and SIEMENS servomotors.
• Retractable timing stops (5 lateral stops and 3 frontal stops for MB60xx or 3 and 2 for MB42xx).
• Automatic dispenser for VILMILL® support film.
• Remote electronic crank.
• Safety zone around machine controlled by radar or light curtains.
• Automatic unloading loading system by spreader or interchangeable tables.
