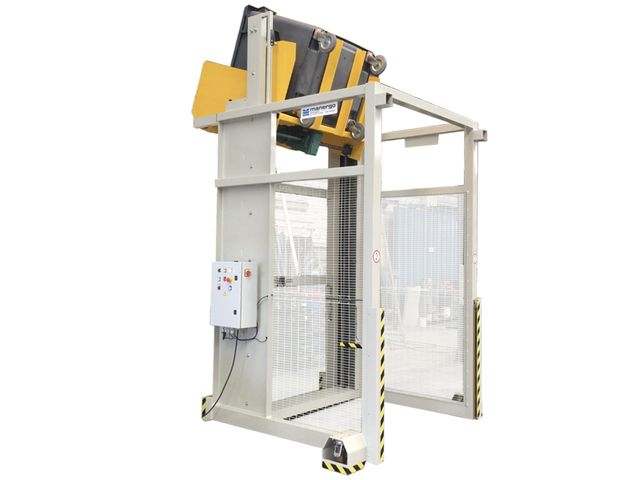

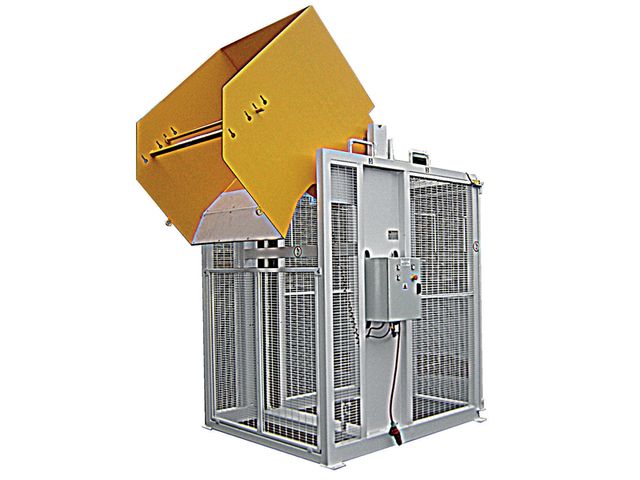

Body tipping lift SKIP for emptying

Dumping body

These transducers have been designedly developed by ELCIS for uses that simultaneously or alternatively require the information form two incremental encoders set in a same container. The separated...

“ Ideal for the complete emptying of your crates ”

Ask for a quote

Presentation

If you need a crate tipper with a rotation angle of 135° to 150°, this crate tipper is the ideal solution.
Can be loaded by a pallet truck or a forklift truck, our box unloader allows a complete emptying of the box.
Our crate tipper produces a lift after the full crate has been placed in the receptacle.

Characteristics :
- Placing a full crate in the receptacle
- Raising then rotating the receptacle from 135° to 150°.
- Dumping height to be defined
- Tilt 135° or 150°.
- Up/down latching button operation
- Side and rear safety guards
- Floor fixing brackets

Options :
- Receptacle dimensions
- Opening the chute
- Made to measure according to your needs
- Soundproofing of the parts in contact with the product
- Possibility to dump at a greater height by placing the unit on a standpipe
- Replacement of the loading side screen doors with a light curtain system
- Mechanical or hydraulic automatic restraint system allowing several types of boxes to be restrained
- Automatic cycle

Technical features

Placing a full crate in the receptacle Raising then rotating the receptacle from 135° to 150° Dumping height to be defined Up/down latching button operation Side and rear safety guards Floor fixing brackets

Download the complete technical features
