Bins tilter 80 to 240 litres VD130

Dumping body

“ Allows you to empty your 80 to 240 litre wheeled bins into large volume bins. Indoor or outdoor use. The bin is inserted through the rear part of the unloader, the operator then operates the tipper into the intended receptacle. ”

Ask for a quote

Presentation

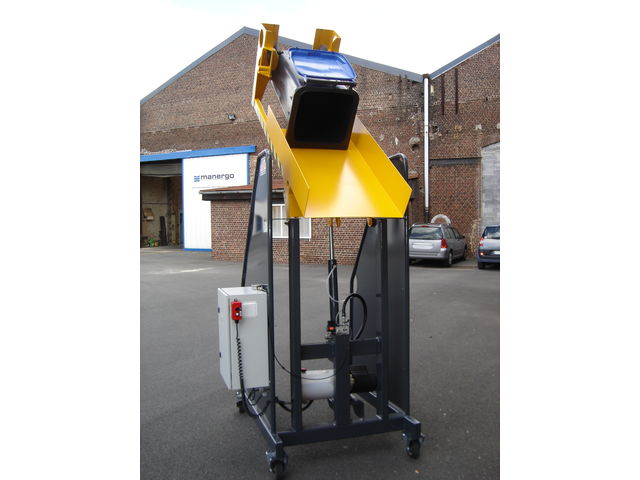

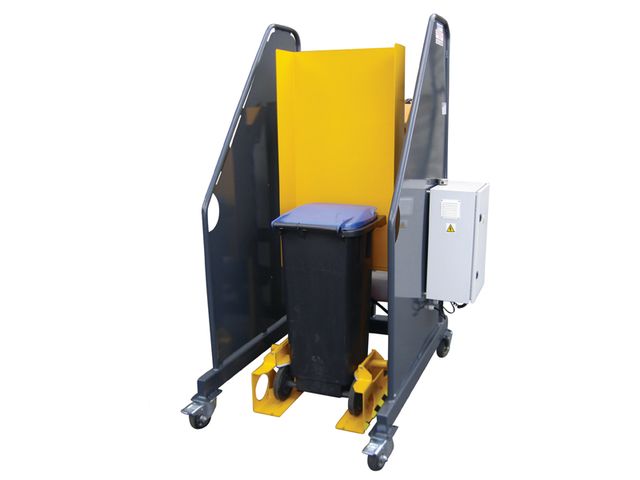

The VD130 waste bin tilteris suitable for emptying 80 to 240 litre waste bins.

Electro-hydraulic device.

Easy to use and in compliance with European standards.

WE DESIGN AND MANUFACTURE OUR PRODUCTS (FRENCH MANUFACTURE)

Characteristics :

- Maximum load 150 kg
- Electro-hydraulic apparatus
- Angle of rotation 130°.
- Loading of two-wheeled wheeled bins only
- Two fixed and two swivel castors with 125 mm diameter polyurethane tyres, both fixed and swivel with brakes
- Discharge chute integrated into the receptacle allowing the product to be properly channelled when discharged.
- Indoor and outdoor use
- Frame painted grey RAL 7016, tilting part yellow RAL 1028
- Two integrated gripping handles for easy movement
- 380 volt connection
- French design and manufacture

Protective bodies :

- Emergency stop
- Two-hand operation (two-hand operation)
- Two sheet metal side guards with a height of 2082mm

Options :

- 360 litre waste bin take-up
- 12 volt power supply with battery and charger
- Power supply 220 volts

Technical features

Maximum load 150 kg Electro-hydraulic apparatus Angle of rotation 130°. Loading of two-wheeled wheeled bins only Two fixed and two swivel castors with 125 mm diameter polyurethane tyres, both fixed and swivel with brakes Discharge chute integrated into the receptacle allowing the product to be properly channelled when discharged. Indoor and outdoor use Frame painted grey RAL 7016, tilting part yellow RAL 1028 Two integrated gripping handles for easy movement 380 volt connection
