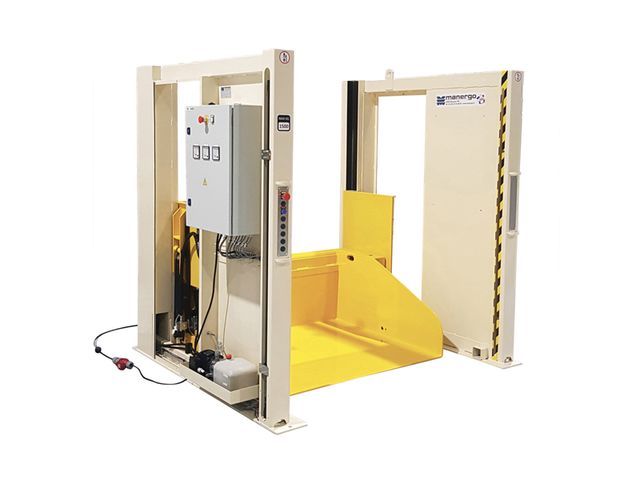

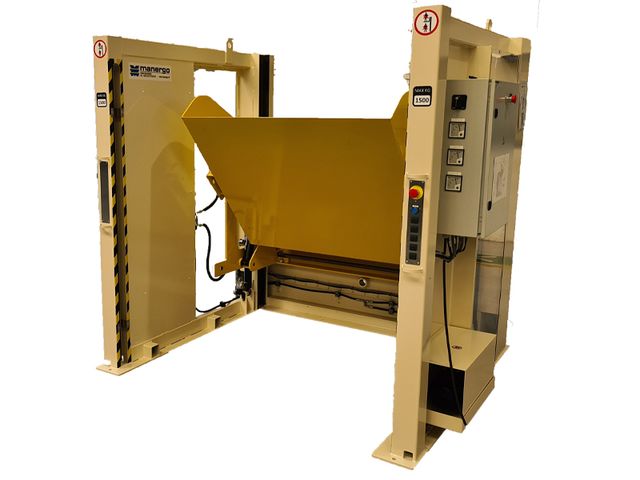

APEP load lifting and tilting display stand

Dumping body

“ 80° load tilting display ! The ideal solution to keep an ergonomic position at all times during loading or unloading of the crate. ”

Ask for a quote

Presentation

80° load tilting display ! The ideal solution to keep an ergonomic position at all times during loading or unloading of the crate.
Customisable, our load tipper must be able to load several types of boxes with a pallet truck and to have an independent lifting and tilting movement.
Equipped with a lateral safety protection, this 80° body tilter also has electrically controlled non-return valves at the exit of the jacks.
This machine helps to combat MSDs and reduce the risk of injury.
Characteristics :
- Vertical displacement
- Maximum angle of inclination 80°.
- Maximum load: 1500 kg
- Up/down/tilt/return tilt control by push button with maintained contact
- Tilt large or small side towards the operator
- Safety side protection
- Protection on the loading side by means of light curtains (cells) or wire mesh doors
- Electrically controlled check valves at the cylinder outlet
- Anti finger pinch bar
- Floor fixing brackets
- Electrical system

According to your needs :
- Tray dimensions
- Choice of colours
- Semi-automatic cycle
