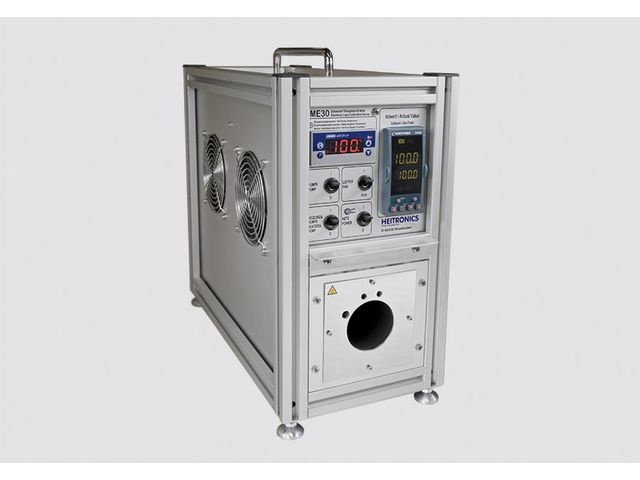

Black-body calibration device from -20 to 350°C / ME30

Temperature standard

Ask for a quote Receive Documentation Contact the supplier

With its uniform distribution of heat conferred by a hydraulic homogenization system, its fine temperature regulation, an emissivity factor of 0.9994 and an opening of 60 mm, this sophisticated device is unique on the market.

Also it is widely used in calibration laboratories around the world. It is very often associated with our TRT standard thermometers.


High Accurate Blackbody Calibration Source with integrated Controller

for Calibration of Infrared Radiation Pyrometer, Thermometer and Thermal Imaging Systems with Temperature Range from -20 °C to 350 °C

Blackbody Radiation Sources with Controller for Infrared Radiation Pyrometers
  • Cavity aperture: 60 mm (2.36 inches)
  • Emissivity: 0.9994 ± 0.0002
  • Cavity length: 300 mm (11.8 inches)
  • Excellent temperature uniformity
  • Isothermie from 0.1 °C, better than 0.7 °C
  • Uncertainty: 0.15 ... 0.70 °C
  • Portable; weight: approx. 20 kg (44 lb)
  • Cavity source immersed in a liquid bath
  • Liquid volume: 1.35 liters (0.4 gal)
  • Precision controller, including a programmer
  • High stability; low controller oscillations
  • Fast heat-up: max. 1 h stabilization time

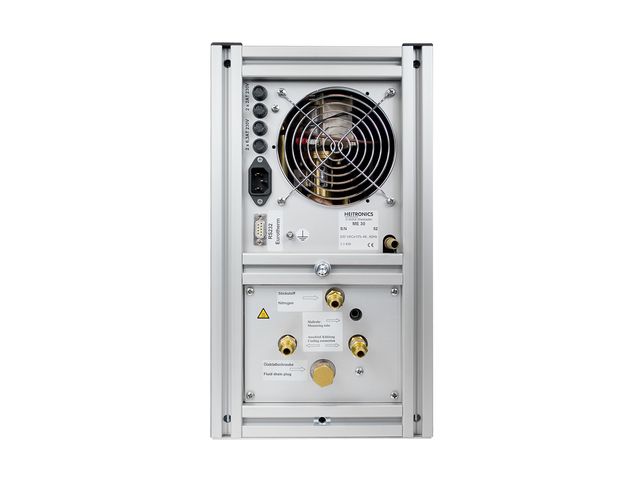

  • Nitrogen rinsing to suppress dew point
  • Traceable to PTB by HEITRONICS Transfer Radiation Thermometer (TRT)
  • ... or RTD-Pt100 (DKD calibrated)
  • Calibration of 3 mm RTD's and thermocouples
  • Temperature range 50 °C to 350 °C
  • ... from -20 °C with external cooler
  • Built-in cooling coil for an external cooler
  • Digital controller, control accuracy 0.1 K
  • Control parameter adjustable
Accessories / Options

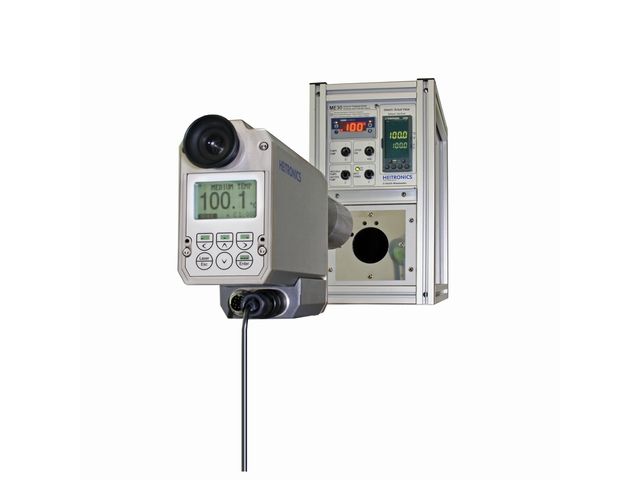

  • HEITRONICS Transfer Radiation Thermometer (TRT II or TRT IV.82) calibrated at PTB
  • DKD-calibrated thermometer for temperature control
