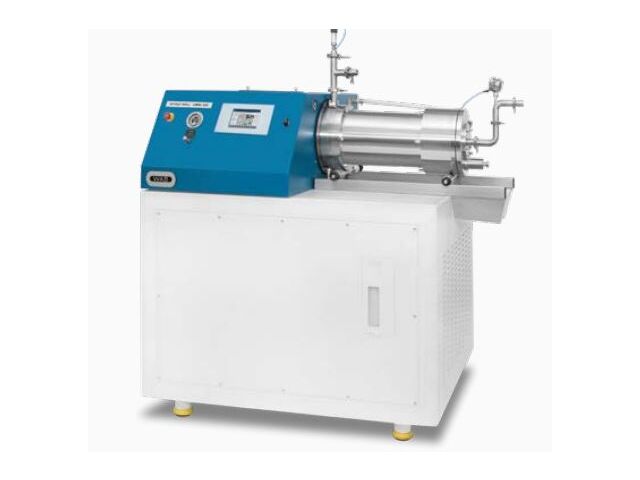

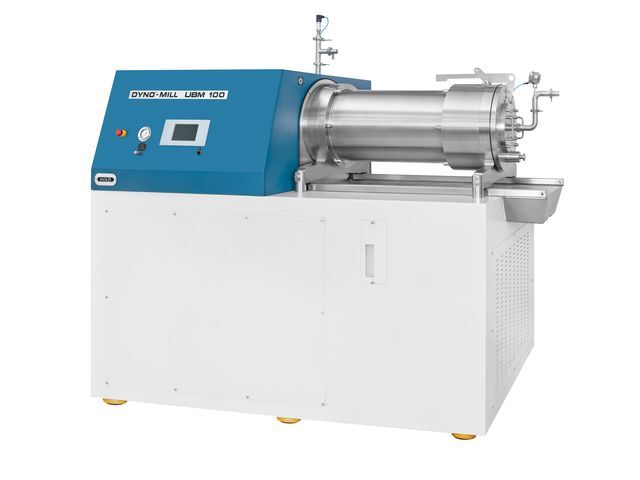

Bead Mill DYNO®-MILL UBM

Bead crusher

With the development of the DYNO®-MILL ECM-AP, WAB has once again proven its innovative strength. This high-efficiency agitator bead mill is equipped with a completely new grinding bead...

“ The DYNO®-MILL UBM is an agitator bead mill with a high production capacity. The new mill is user-friendly, simple and economic in operation. ”

Ask for a quote

Presentation

The name DYNO^®-MILL UBM speaks for itself: Universal Bead Mill. It was developed for universal use.

The new generation of WAB agitator bead mills covers the entire range from dispersion to ultra-fine grinding. It is suitable for grinding bead diameters from 0.2 to 2.5 mm. The newly developed grinding system with its large screens allows processing with high throughputs and of high-viscosity products.

One of the strong points of the DYNO^®-MILL UBM is the extremely even distribution of the grinding beads in the active grinding chamber. This allows stable and effective process parameters to be determined quickly and easily for the pass and circulation modes.

Technical features

Unique grinding principle based on the innovative DYNO®-DISC BC agitator discs (patent pending) Suitable for high throughputs Ideal for the dispersion and grinding of highly viscous products Long screen service life Suitable for pass mode and circulation mode Wide range of materials for selection of the optimal machine equipment Use of grinding beads between 0.2 and 2.5 mm Grinding chamber volumes from 0.5 to 100 litres Ideal grinding chamber height enables ergonomic working High wear resistance and thus reduced maintenance costs

Usage scope

Chemistry - paint and varnish - printing colors Pigment paste and dyes - Inkjet inks Phytosanitary - ceramics - microelectronics Pharma products - cosmetics Food industry - paper - biotechnology
