Bead Mill DYNO®-MILL KD

Bead crusher

With the DYNO®-MILL KD, WAB has launched the first horizontal agitator bead mill on the market. The original agitator bead mills from WAB are true all-rounders. This type of machine has been used for...

“ The original agitator bead mills from WAB are true all-rounders: This type of machine is used in practically all applications – thanks to decades of work in our development department. We adapt the series to meet highly specific customer requirements. It works just as reliably in mass production as it does in dispersing the finest raw materials. ”

Ask for a quote

Presentation

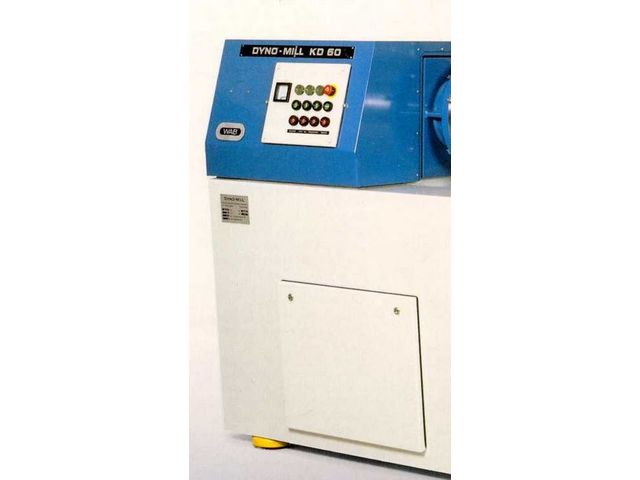

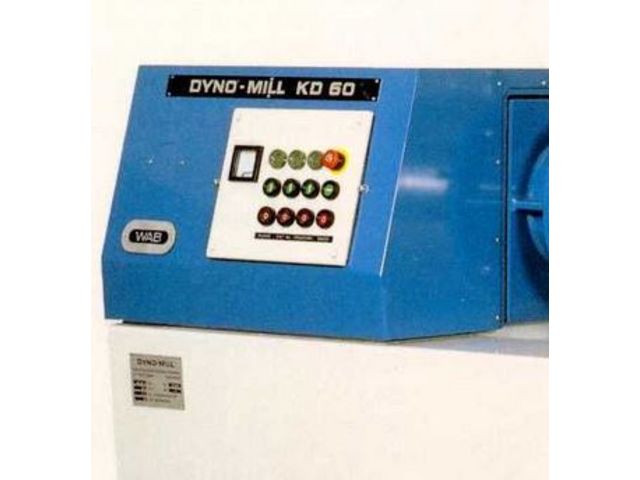

With the DYNO^®-MILL KD, WAB has launched the first horizontal agitator bead mill on the market.

The original agitator bead mills from WAB are true all-rounders. This type of machine has been used for decades in practically all applications. The consistently growing range of materials, the material quality, and the adaptation of these models as needed to highly specialized customer requirements make this type of mill the first choice in many applications today.

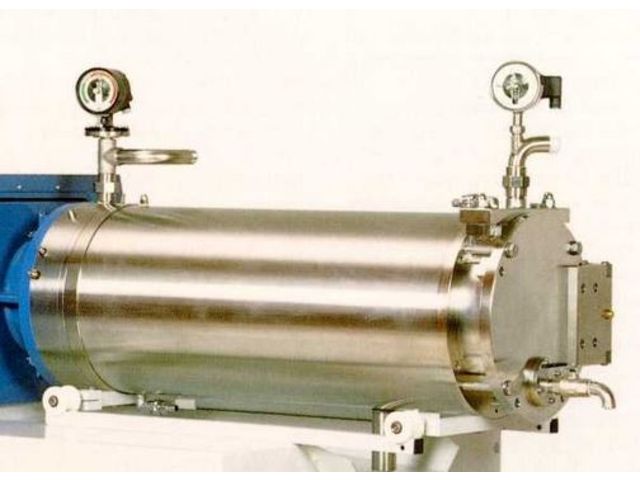

The DYNO^®-MILL KD disc mills are available with grinding chamber volumes from 0.15 to 600 litres and are suitable for practically all types of grinding media. The production mills can be operated with grinding bead diameters from 0.5 to 2.5 mm.

Technical features

Ideal for pass mode operation with consistent efficiency and achievement of the narrowest possible particle size distribution in the micrometre range The ideal equipment for every product with an extremely wide choice of materials for wear parts that come in contact with the product – including hardened steel, stainless steel, hard chrome-plated stainless steel, polyurethane, and engineered ceramics Maximum operating safety – the basic model already complies with the explosion protection directive for installation in ATEX zone 1 (Ex II 2 G cb IIB T3) Grinding bead diameters from 0.5 to 2.5 mm Ideal cooling properties: The compulsory flow of the cooling water in the outer jacket permits the processing of temperature-sensitive products Easy to use – all DYNO®-MILL KD mills can be disassembled in just a few steps Simple operation and easy setting of operating parameters Scale-up to all machine sizes of the DYNO®-MILL KD series Low operating and maintenance costs

Usage scope

Chemistry - paint and varnish - printing colors Pigment paste and dyes - Inkjet inks Phytosanitary - ceramics - microelectronics Pharma products - cosmetics Food industry - paper - biotechnology
