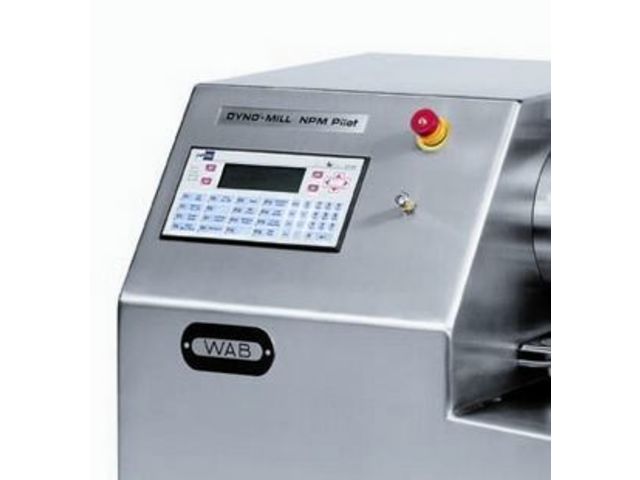

Bead Mill DYNO®-MILL NPM

Bead crusher

“ With the unique, patented grinding principle, the DYNO® ACCELERATOR, the best product quality with the narrowest possible particle size distribution and a fineness of less than 100 nm can be achieved ”

Ask for a quote

Presentation

With this new special nano mill DYNO®-MILL NPM you can achieve low-viscosity nano suspensions with exceptional product properties.

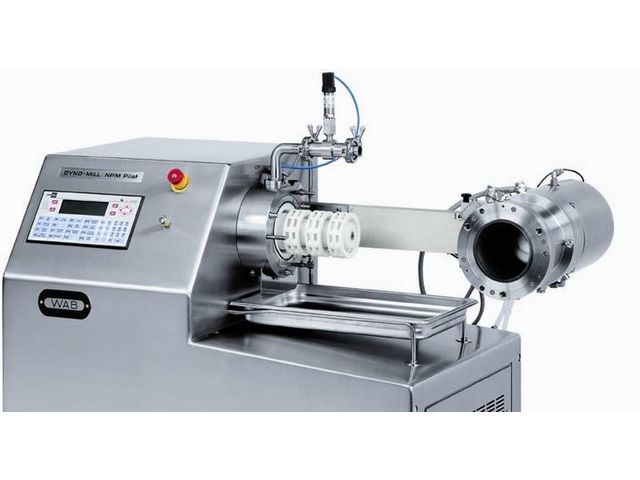

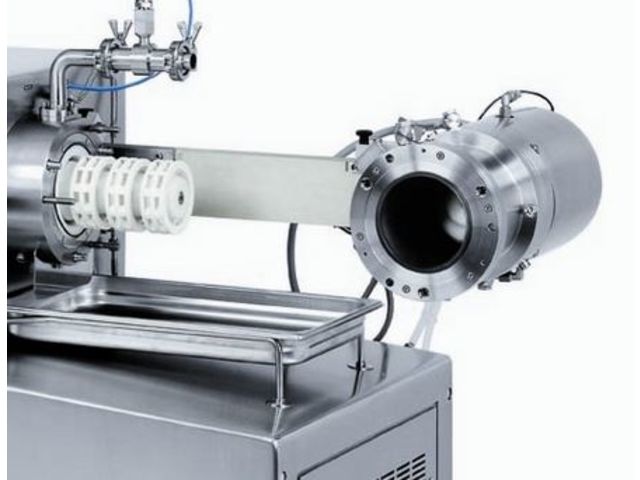

The mill has a dynamic, rotating grinding bead separation system with its own drive. This enables process adjustments in two steps. The peripheral speed of the separation system ensures that the grinding beads are safely separated from the material to be ground. The peripheral speed of the agitator shaft can be adjusted independently of the separating system to the requirements of the grinding task.

Technical features

The patented DYNO® ACCELERATOR initiates the powerful, hydraulic motion of the grinding beads and guarantees a high and constant energy input for low-viscosity products Dynamic grinding bead separation system for an optimal process when ultra-fine grinding beads with diameters from 0.05 to 0.2 mm are used Suitable for pass and circulation mode to achieve the narrowest possible particle size distribution Metal-free grinding thanks to the use of high-quality engineered ceramics Low energy consumption because of efficient energy input (kWh/kg product) Ideal cooling properties allow the processing of temperature-sensitive products Gentle processing through hydrodynamic acceleration of the grinding beads Acquisition of process data and guaranteed reproducibility with the modern WAB VIEW process control system Easy cleaning with a minimum of cleaning agent Easy handling with low operating and maintenance costs

Usage scope

Chemistry - paint and varnish - printing colors Pigment paste and dyes - Inkjet inks Phytosanitary - ceramics - microelectronics Pharma products - cosmetics Food industry - paper - biotechnology
