Automotive vortex flowmeter

Vortex effect flow meter

“ - Minimal effect on engine performance during measurement, - low pressure drop, - driftfree performance, - excellent at low flows (down to 0.14 ACFM), - easy maintenance, - 40:1 turndown ratio, - continuous flow readings, - high accuracy, excellent repeatability. ”
Ask for a quote Receive Documentation Contact the supplier

Automotive vortex flowmeter VF563 from J-TEC ASSOCIATES

The J-TEC in-line flow meters provide all the advantages of vortex shedding technology, in a design that is perfect for rugged applications with minimal space requirements.

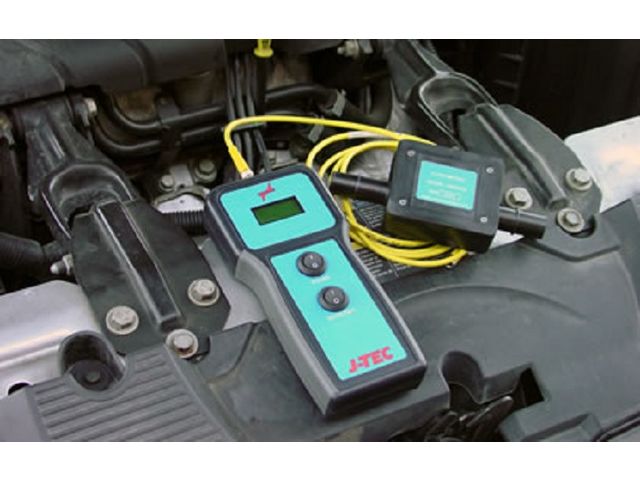

The VF563 Series is the best value for your low-pressure gaseous flow applications. This device is the meter of choice especially for the measurement of blow-by gases in engine testing applications. Other vortex flow meters lack crucial sensitivity because they can only detect vortices created by large, restrictive obstructions. This diminishes important low-end performance.

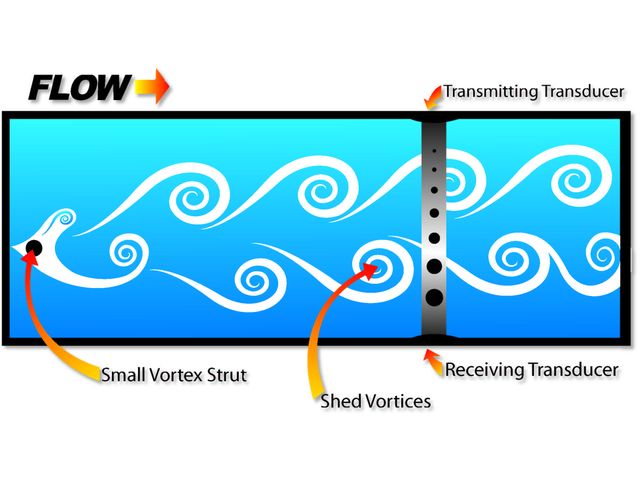

The J-TEC design incorporates a small strut, which offers minimal flow restriction, for high accuracy over an extended range. Each meter is individually calibrated to NIST traceable standards. J-TEC flow meters have no moving parts, so they are rugged and trouble-free.

Benefits include: Minimal effect on engine performance during measurement, low pressure drop, driftfree performance, excellent at low flows (down to 0.14 ACFM), easy maintenance, 40:1 turndown ratio, continuous flow readings, high accuracy, excellent repeatability.

SPECIFICATIONS

Operating (gas) temperature: 0° to 200°F (-18° to 93°C)
Operating pressure: -5 to 30 PSIG (-0.34 to 2.1 BARg)
Accuracy: ± 2% full scale
Repeatability: ± 0.5% of reading
Input power: +12 to +24 VDC at 35 mA
Outputs: 0 to 5 VDC,
Frequency or Optional Handheld Display Construction: Anodized aluminum
Ambient temperature limits: -20° to 150°F (-28° to 66°C)
Response Time-Analog/Freq: 100 milliseconds

Accuracy: ± 2% full scale Operating (gas) temperature: 0° to 200°F (-18° to 93°C) Operating pressure: -5 to 30 PSIG (-0.34 to 2.1 BARg) Repeatability -± 0.5% of reading Input power: +12 to +24 VDC at 35 mA Output: 0 to 5 VDC, Frequency or Optional Handheld Display Construction: Anodized aluminum Response Time-Analog/Freq: 100 milliseconds Ambient temperature limits: -20° to 150°F (-28° to 66°C) Easy maintenance
Download the complete technical features

Air admission Blow-by measurement Industry Automotive industry
