Transit time ultrasonic flow and/or energy meter TFX-5000

Ultrasound flow meter

“ - Large, bi-directional flow measuring range - Reduced installation time and cost - No moving parts to maintain or replace ”

Ask for a quote

Presentation

The TFX-5000 transit time meter measures volumetric flow and heating/cooling energy rates in clean liquids as well as those with small amounts of suspended solids or aeration, such as surface water or sewage.

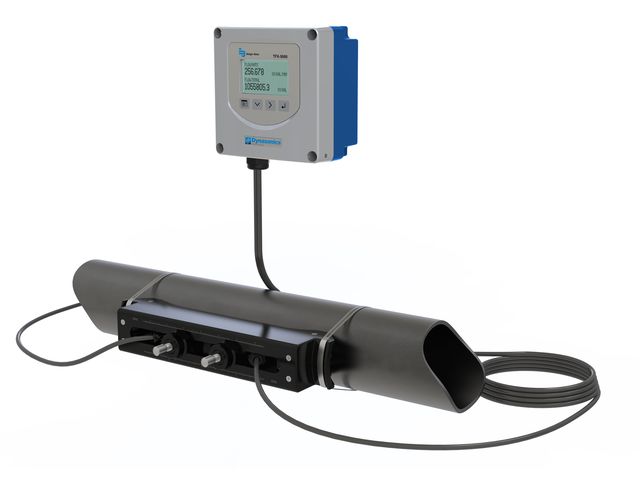

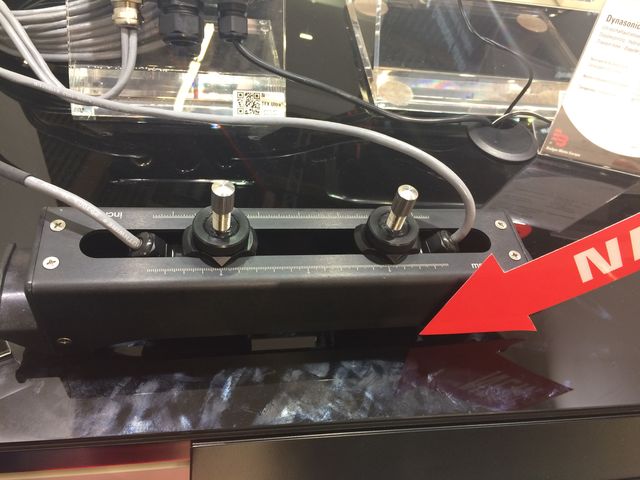

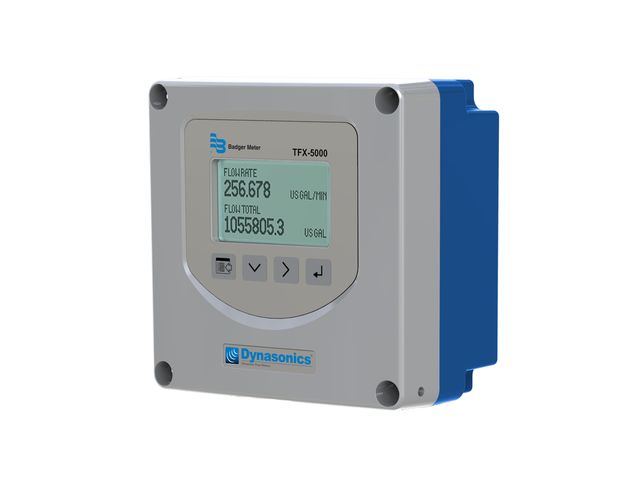

TFX-5000 ultrasonic flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid.

The heat meters use the highly precise ultrasonic transit time measuring principle, for which two ultrasonic sensors are externally mounted on the pipeline and connected to the electronic. The ultrasonic sensors work alternately as transmitter and receiver, and mutually send ultrasonic signals. During these transmissions, the respective signal transit times of the to-and-from signals (t1, t2) are measured.

The electronic measures the difference of the transit time of the ultrasonic signals going with and against the flow direction t1 and t2. These signals are either decelerated or accelerated by the medium flow. The difference produced in both signal transit times is proportional to the flow rate and is used together with the pipeline geometry for a precise flow calculation.

Technical features

For pipes DN12 to DN1200 Liquid types : Most clean liquids or liquids containing small amounts of suspended solids or gas bubbles (Medium: Water, Lightly aggressive fluids, Lubricant oil, Water-based fluids, Liquid food) Accuracy : +0.5% of reading to +/-1% full scale depending on pipe size Repeatability : 0.2% of reading No pressure loss thanks to non-intrusive measurement technology Power Options : 24V DC/AC or Mains AC PT1000 (class A) RTD's for fluids -50°C to +180°C (= -58°F to +356°F) Ambient Temperature Range : -4…140° F (-20…60° C) Several outputs available : Modbus® RTU or BACnet® MS/TP via EIA-485, BACnet/IP, EtherNet/IP or Modbus TCP/IP; AquaCUE®/BEACON® connectivity Enclosure NEMA Type 4X, IP67
