Automatic cable reels- STEEL 800 RANGE

Electric roller

This sign symbolizes the presence of an exit In compliance with MFX 08003 ISO 6790/7010 Silk-screen printing Indoor and outdoor use Custom-made on request

“ Level of protection IP65 ”

Ask for a quote

Presentation

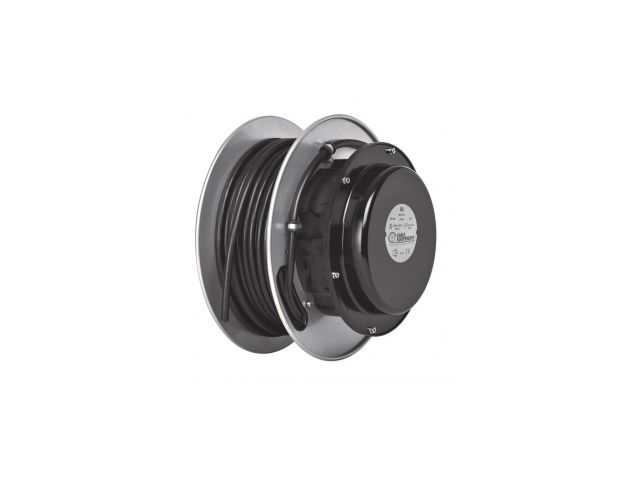

STEEL 800

− Painted steel and polymer case
− Level of protection IP65
− From 1 to 25 conductors, from 1 mm² to 25 mm², until 55 meters
− High quality steel spring loaded (long-lasting in time)
− Collector 32A, 60A or 100A depending on the models

− Use:
              - Horizontal for some models
              - Horizontal and vertical for other models (see the tables below)

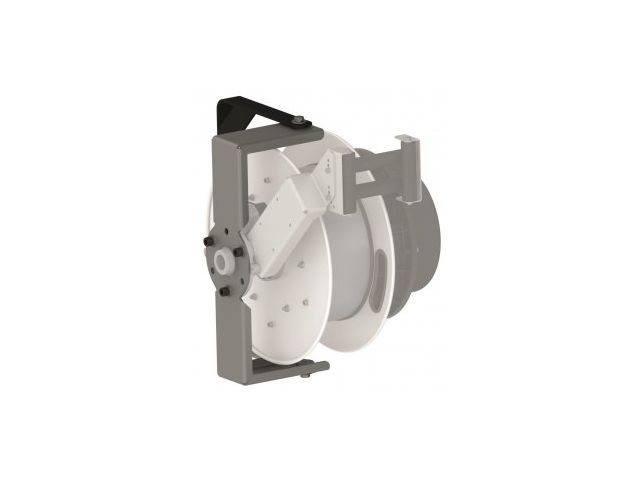

− For vertical use, the fixed bracket ERXS8-03 is mandatory, the cable guide ERXS8-06 or ERXS8-07 is recommended.

− 2 types (see below)
− Options:

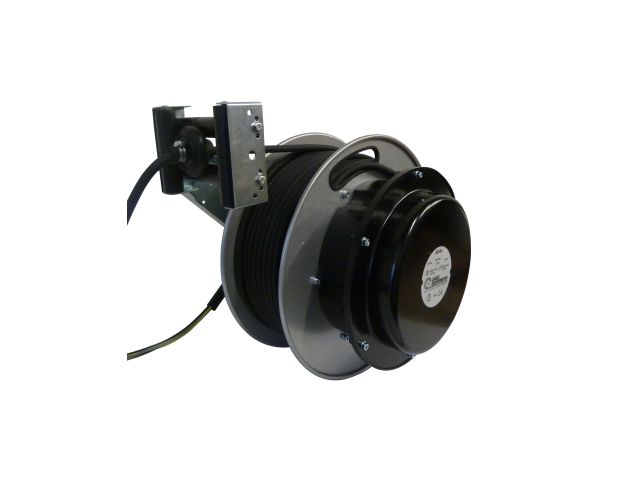

- Swivelling bracket
- Fixed bracket
- Guide roller / Ratchet
- Rotating arm
- Safety return
See the options compatible with the different models in the tables below. The options are shipped disassembled.

− The automatic cable reels are delivered with:
              - Power cable length 2.50 meters
              - Anchor sock adapted to the cable

− The reels are supplied with cable.
   All models are available without cable (ERSC code, etc.), please contact us.
     The cable installation is under the customer's responsibility.

− Provide ampere protection upstream of the reel, cutting all phases and taking into account the most unfavourable situation (coiled cable).
− The cable must enter the center of the cable guide without sharp angles or friction.
− Use temperature - 5 °C/+50°C
− Maximum winding speed: 40 m/minute
− Collector isolation voltage 2.5 kV

Given the technical nature of this range, it is strongly adviced to consult us to define, according to the intended use, the appropriate model and the necessary options.

Technical features

Painted steel and polymer case Collector 32A, 60A or 100A depending on the models Use temperature - 5 °C/+50°C Maximum winding speed: 40 m/minute Collector isolation voltage 2.5 kV
