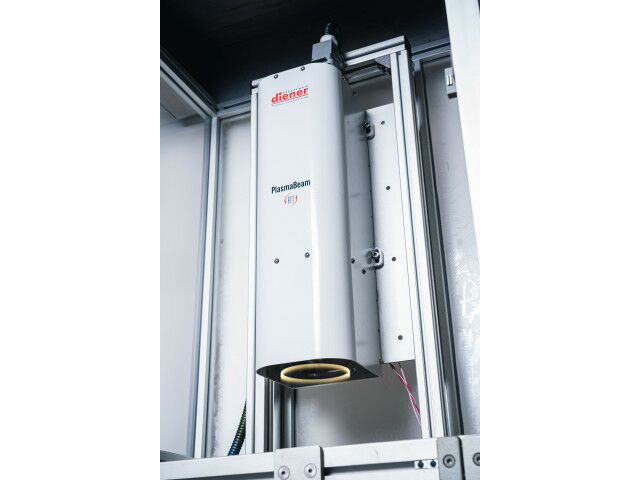

Atmospheric Plasmasystem | PlasmaBeam RT

Plasma systems from Diener electronic have long since established themselves in a wide variety of industrial sectors. With the atmospheric pressure plasma system PlasmaBeam RT, you can rely on modern and future-proof plasma jet technology under atmospheric pressure. Due to the treatment width of 120 mm, substrates can be treated locally with precision.

With our new product, the PlasmaBeam RT, there is now the perfect solution for fast, efficient and wide in-line plasma treatment of 2D surfaces. The RT can be perfectly integrated into existing production lines and thus enables the automated cleaning and activation of various components and web-shaped materials.

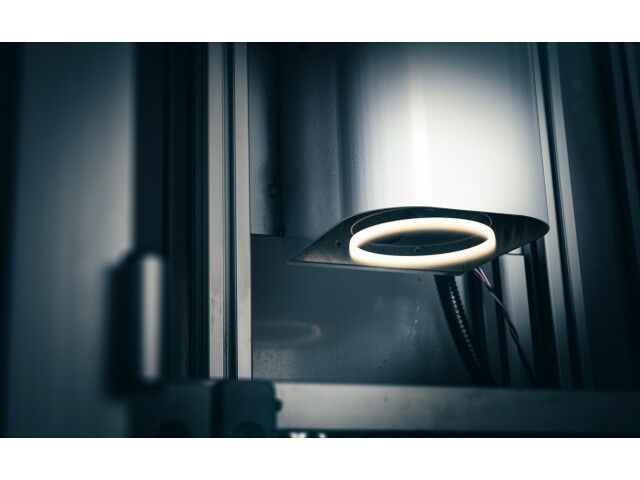

Equipped with two complementary aligned nozzles rotating at high speed during operation, we create the possibility of a plasma treatment up to 120 mm wide, with the usual consistent quality and effectiveness of atmospheric pressure plasma systems from Diener electronic.
Parts such as metal sheets, foils, textiles, displays or, for example, large-area housings can be professionally plasma-activated and/or ultra-fine cleaned with the PlasmaBeam RT.

Furthermore, the PlasmaBeam QUATTRO is suitable as a pre-treatment device for the following processes: Gluing, bonding, printing, laminating, soldering, welding, flocking. The following surfaces can be treated with PlasmaBeam: Plastic, rubber, metal, glass, ceramic, hybrid materials.

Main features:
Table-top housing
Plasma generator Treatment width 120 mm
Generator Frequency approx. 20 kHz Power approx. 2 x 300 W
Process and cooling gas: Dry, oil-free compressed air; inlet pressure 5 - 8 bar; gas consumption approx. 4 m³ / h
Power supply 230 V, 50 / 60 Hz
Control: Manual - via button on the front panel of the unit; Semi-automatic - remote control via remote (connection on the rear panel of the unit)

The PlasmaBeam RT is mainly used in the following areas: automotive, electrical engineering, elastomer technology, precision engineering, research and development, small series production, plastics technology, medical technology, microsystems technology, solar cell technology.

Diener electronic offers future-oriented solutions in the following areas:
- Low pressure plasma systems for surface treatment
- Atmospheric pressure plasma systems for surface treatment
- Parylene coating systems
- Aluminium vacuum chambers made of a unique, flexible and patented chamber system
- Complete vacuum systems and equipment for a wide range of applications
- Test inks for determining surface tension
- Plasma indicators to prove successful plasma treatment
- Plasma generators
