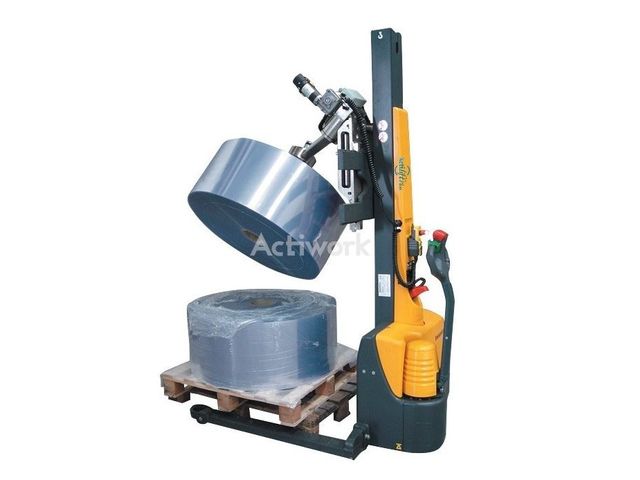

500 kg inverter stacker Actilift +

The ultimate reel manipulator!

 3 in 1, move, lift, turn over your reels with a single device.
All electric, allows heavy load handling by all staff.
Equipped with many settings and parameters thanks? CURTIS PLC technology.

 Application domain :

- For handling coils of 500 kg MAXI
- Maximum diameter 1000 mm (ok for 1200 mm if width 550 mm Max.)
- Width min 400 mm, max 800 mm
- Internal mandrel diameter 76 or 152 mm

Technical description :

- Electric lift and displacement stacker
- Electric trolley with 2 x batteries (12V - 60 Ah) + charge indicator
- Mini charger 24V 8A
- Electrically actuated clamping and loosening chuck from the remote control box on a spiral cable
- "duo touch" safety device authorizing the release of the chuck only if the 2 push buttons are actuated
- Audible chuck tightening warning alarm
- 200 ° rotation of the accessory from the remote control box allowing vertical grip and horizontal removal or vice versa
- Lateral translation of the accessory on REXROTH linear guide allowing it to be moved by 100 mm
- New "CURTIS" PLC technology with setting of many possible parameters and overload safety
- Quick connection on the stacker allowing the spool holder accessory to be interchanged by the forks, in 5 minutes
- Standard finishes: black epoxy painted steel as standard, yellow ABS cover
