Active Linear Convection Gauges APGX-H-NW16, aluminium

Other measuring systems

Ask for a quote Receive Documentation Contact the supplier

Edwards Linear Convection Vacuum Gauge has a wide measuring range from 1333 to 3 x 10-4 mbar (1000 to 2.3 x 10-4 Torr).

The use of convection technology ensures accuracy and sensitivity are maintained to the top of the range.

The gauge is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status.

Pressure range : 1333 to 3 x 10-4 mbar(1000 to 2.3 x 10-4 Torr) Power supply : 14.5 to 30 V DC Power consumption : 1.5 W maximum Accuracy : ±15% of reading ±3 x 10-4 mbar Repeatability : ±5% of reading Response time : < 100 ms Maximum overpressure : 10 bar absolute (145 psia) Adjustments : Set vacuum and set atmosphere. To allow for variations in barometric pressure, atmosphere may be set in the range 700 to 1100 mbar (525 to 825 Torr).
Download the complete technical features

OTHER PRODUCTS OTHER MEASURING SYSTEMS FROM EDWARDS SAS

TIC Instrument Controller 3 Head RS232/RS485

TIC Instrument Controller 3 Head RS232/RS485

 Ask for a quote
Active Pirani vacuum gauges APG100-XM, NW16

Active Pirani vacuum gauges APG100-XM, NW16

 Ask for a quote
Active Thermocouple Gauge ATC-E Electronics module

Active Thermocouple Gauge ATC-E Electronics module

 Ask for a quote
Active Strain Gauge ASG2 1/8 Inch NPT, 1000 mbar

Active Strain Gauge ASG2 1/8 Inch NPT, 1000 mbar

 Ask for a quote
Active Inverted Magnetron (AIM)

Active Inverted Magnetron (AIM)

 Ask for a quote

INTERNET USERS ALSO CONSULTED ON THE CATEGORY OTHER MEASURING SYSTEMS

Memosens | Cutting-edge sensor technology

Memosens | Cutting-edge sensor technology

 Ask for a quote
Food checkweigher - Flexus® Highspeed

Food checkweigher - Flexus® Highspeed

 Ask for a quote

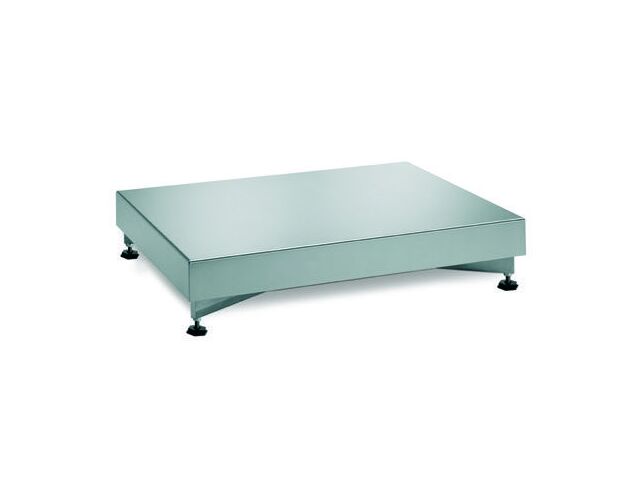

Bench and floor scale - Midrics®
