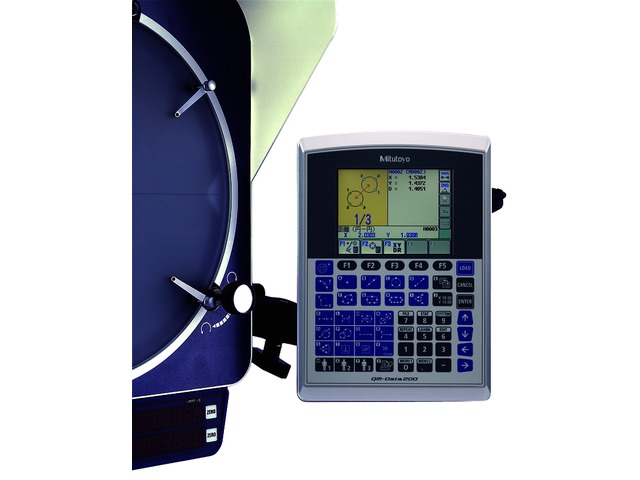

The Data Processing Unit QM 200 has been especially designed to process measurement
data generated by a profile projector or measuring microscope.
The QM-Data 200 offers you the following benefits:
-

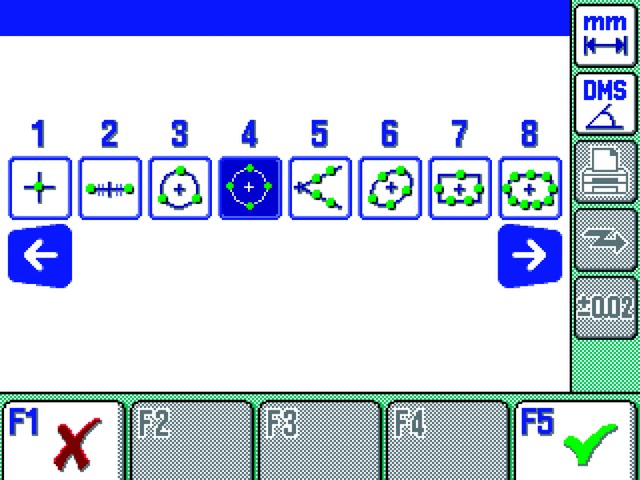

Measuring instructions, measuring values and calculation results for various operations are shown on the back-lit LCD in a clear, easy to understand style.
-
You can also print measuring results, either on a small and convenient thermal printer
(available as a special option) or on an ESC/P printer and continuous paper.
-
By connecting an optional floppy disk drive newly created part programs, you can store and/or load measurement results as well as calculation results.

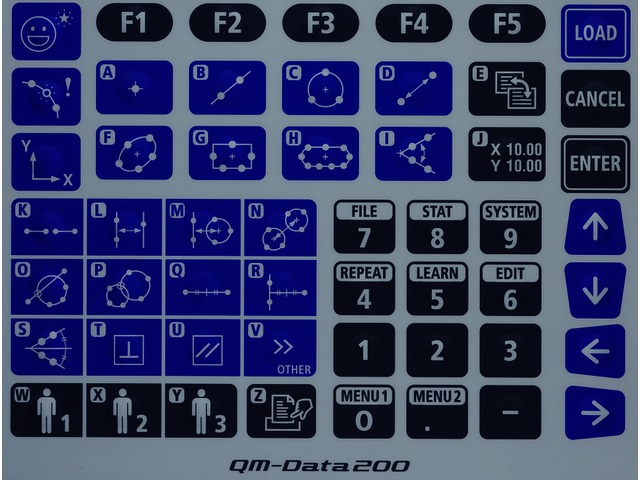

Measuring of Geometric Elements:Maximum of 1000 elements, point, line, circle, distance, ellipse, rectangular hole, slotted hole, intersection and intersecting angle and point & angle, plus a number of functions for evaluation, e.g. perpendicularity and parallelism are provided.
