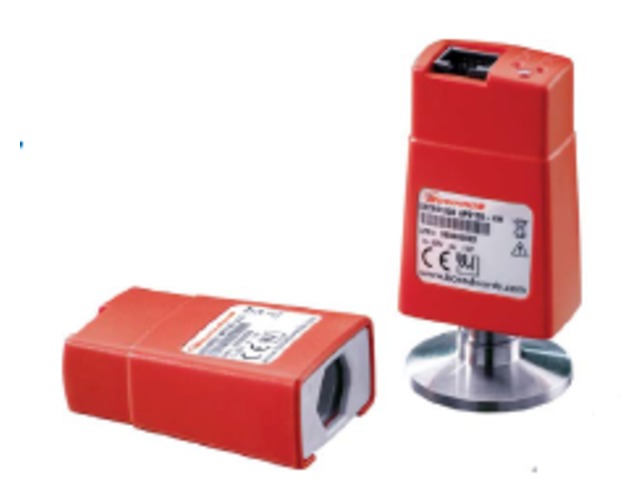

Active Pirani vacuum gauges APG100-XM, NW16

Other measuring systems

Ask for a quote Receive Documentation Contact the supplier

Edwards APG100 series Active Pirani vacuum gauges are available in 2 models. The APG100-XM is the standard model and measures to 10-3 mbar, the APG100-XLC is a corrosion resistant version with measurement to 10-4 mbar.

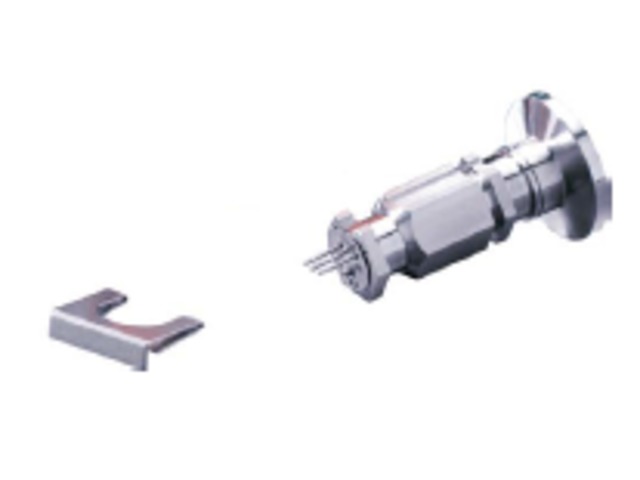

Both gauges feature compact size for easy installation, a linear output and a replaceable sensor tube. These gauges are compatible with all Edwards TIC instrument controllers and other Active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction.

Mass : 85 g Internal volume : 5 cm3 Enclosure rating : IP40 Measurement range (APG100-XM) : Atmosphere to 10-3 mbar Measurement range (APG100-XLC) : Atmosphere to 10-4 mbar Accuracy (APG100-XM) : Typically +/- 15% at <100 mbar Accuracy (APG100-XLC) : Typically +/- 15% at <10 mbar Maximum over-pressure : 10 bar absolute Operating temp range : 5o to 60o C Storage temp range : -30o to 70 oC
Download the complete technical features
