voestalpine Sadef

ZED profile

Industrial profiles

Ask for a quote Receive Documentation Contact the supplier

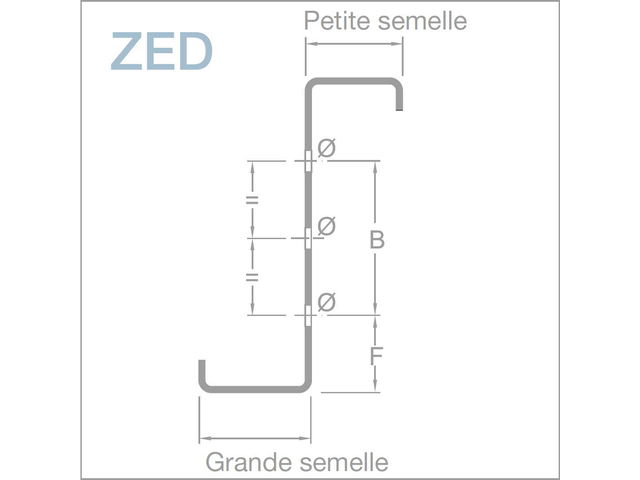

Sadef offers an unbeatable range of ZED sections,

• up to 450 mm height,
• 5 mm sheet thickness and
• profile lengths up to 20 m.

They can be foreseen of integrated connections in order to facilitate assembly.

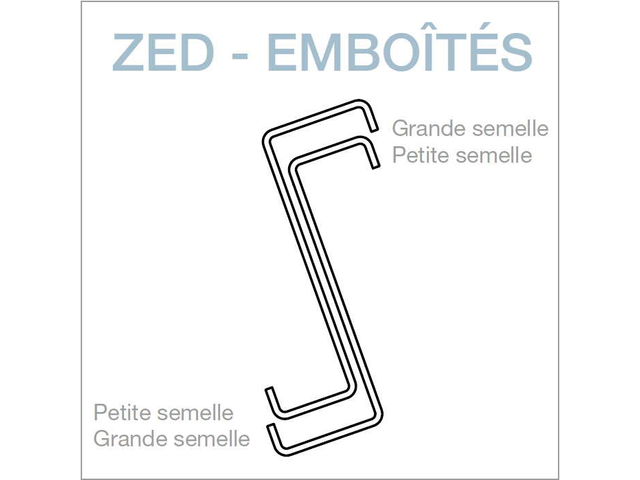

The flanges of Sadef Zed building components have different widths so that the sections – by means of an overlap – can be nested at internal supports of a continuous beam.

The Sadef Zed sections, used as a continuous overlap beam, in combination with high-grade steel results in an optimal stiffness and strength in relation to its weight. Compared to the IPE sections, the use of Sadef Zed sections results in a weight-saving of 60%.

Sadef-sections are provided with the necessary holes and supplied just-in-time to site, ready to assemble. The accessories required - e.g. cleats, anti-sag bars, and suchlike - can also be supplied, as standard.

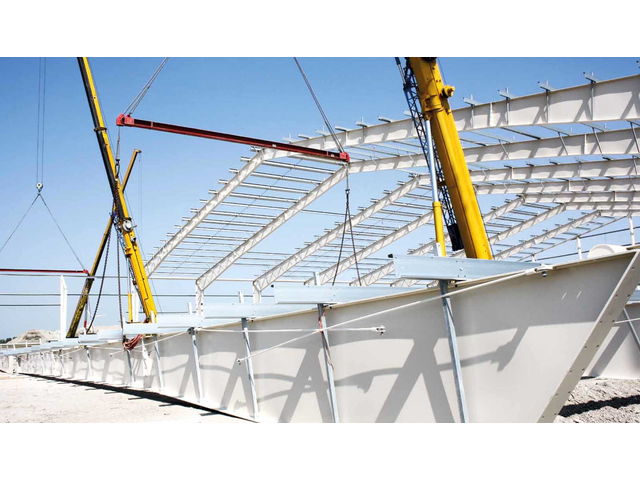

These Sadef Zed building components can be used for residential as well as industrial buildings as roof purlins, side rails or mezzanine floor beams.


OTHER PRODUCTS INDUSTRIAL PROFILES FROM voestalpine Sadef

Custom Roll Formed Profiles: 3D Laser Cutting

Custom Roll Formed Profiles: 3D Laser Cutting

 Ask for a quote
I-plus profile

I-plus profile

 Ask for a quote
CEE - CEE-plus profile

CEE - CEE-plus profile

 Ask for a quote
IS -plus profile

IS -plus profile

 Ask for a quote
Portal frame systems

Portal frame systems

 Ask for a quote
Custom Roll Forming : Open and welded sections

Custom Roll Forming : Open and welded sections

 Ask for a quote

Check out all the products from industrial profiles from VOESTALPINE SADEF

INTERNET USERS ALSO CONSULTED ON THE CATEGORY INDUSTRIAL PROFILES

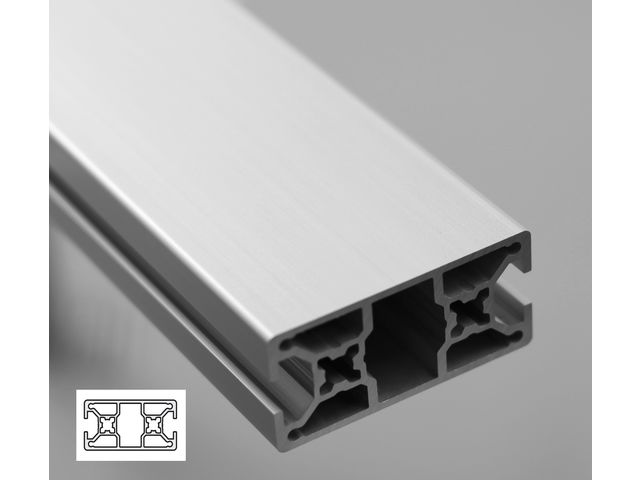

Aluminium profile 30x60 8mm slot
