Winding machines on reel and crown - ECO-COCCI manual spooling

Special machines

Ask for a quote Receive Documentation Contact the supplier

Mixed motorised coiler-winderwinding on cable drum (400 kg) and making coils

For drum winding (max 400kg and Ø 1050mm)

To make coils

Cables max Ø 50 mm



Industry - Distribution - Logistics :

Safety First

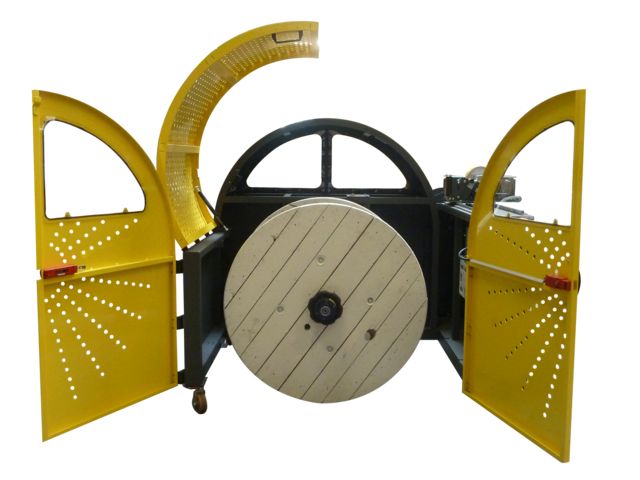

- A real crankcase, not a simple bar, for protection but doesn't hinder either: when open the work space is clear

- Crankcase on the gavette and on the cable drum (winding impossible in open position)

- The operator remains next to the machine, outside the danger zone between the unwinder drum and the machine.

- Torque limiter (instant stop in the event of unwinding drum lockout)

- Gradual start

- Double synchronous "dead man" control

- Emergency stop



ECO-COCCI



- ECOlogic: for raising and lowering the drum, the hydraulic jack (risk of leakage and maintenance requirement) is replaced by an electric jack

- ECOnomic: excellent ratio quality - safety - price



Machine CE certified under the control of BUREAU VERITAS

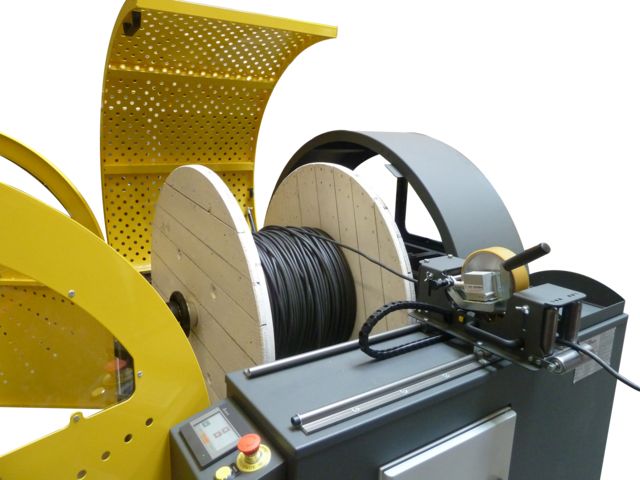

Drum winding

Maximum diameter 1.050 mm (CBN)

Maximum width: 600 mm (with central hole Ø 82mm) Maximum weight: 400 kg

Diameter of the drum shaft: 40 mm



Cantilever axle with pin drive. Drum unloading is done by clearing the machine.

The Easy-Lock ® system allows for quick and easy locking of the drum on the shaft.

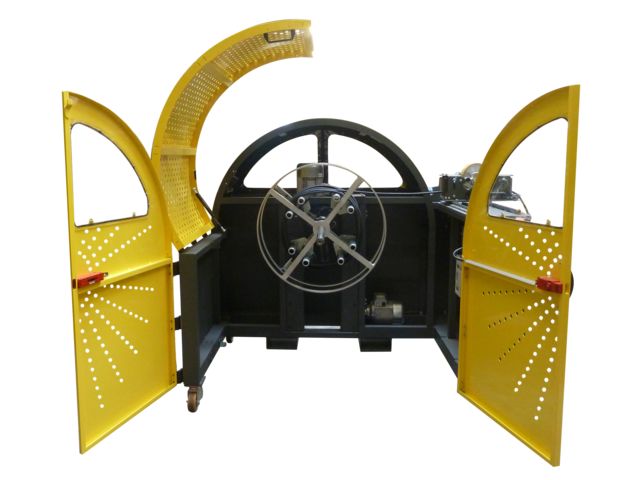

Coiling device to make coils

The coiling device, which is removable, can be assembled quickly instead of the drum.

Choice between 2 models of coiling device.

The 2 coiling device have an external diameter of 750 mm.

They are made in galvanized steel.

External flange, light and easy to handle (in aluminium).

Quck lock up system at the end of the cable.

Opened coiling device to ease the tying of the coil.

The width can be adjusted upon 3 positions : 130/180/230 mm.

The drum / barrel includes 4 blades.

It is the adjusting of the drum's diameter which differs between the 2 coilig device.



Adjustable coiling device

The diameter of the barrel can be adjusted by screwdriving

(2 screws on each of the 4 bladers), over 7 positions : 190/240/290/340/390/440/490 mm.

Code GR750EC



Coiling device with quick adjustment

Each of the 4 bladers of the core includes en indexing finger which allows :

- The adjustement without any tool of the inner diameter upon

4 positions : 330/440/560/670 mm.

- The extracting («demolding») of the crown very easily.

Code GRR750EC



Mobile machine

To be used in front of a drum rack.

2 fixed locking wheels, parallel to the rack, and

2 pivoting roller wheels

With its large manoeuvring bar at the rear, the ECO-COCCI is very easy to handle.

In addition, sheaths are provided for forklift forks.



Measuring device on a cross-winding bench

M50 measuring device for cable diameter max. 50 mm, with 50cm polyurethane development measuring wheel development and encoder.

A handle locks the measuring wheel in the up position to facilitate cable introduction.

Double programming electronic counter: slowing down, then stopping at the chosen length.

The measuring device is equipped with 4 guide rollers at the front and rear, and is mobile on a cross-winding bench for the proper arrangement of cable coils next to one another.



Touch Screen

All functions of the machine are controlled from the intuitive and easy to use touch screen.

4.3 '' screen (129x103 mm), front IP65. Administrator mode and user mode.



Motorization
Gear motor : 1,1 kW

Variable Frequency Drive

- variable speed from 0 to 80 rpm

- programmed acceleration ramp

- torque limiter

Electric jack : 0.55 kW

230V single phase 50 Hz

Dimensions

Width : 1.400 mm

Length : 1.800 m

Height : 1.550 mm

Weight : 380 to 406 kg, depending on the version.



The ECO-COCCI machine exists in 2 versions :



MANUAL CROSSWINDING Version

Thanks to the handle placed on the measuring device, the operator performs the back and forth movement manually.

Model without gavette : code E3050
