For making coils
For winding on a small spool (max 100kg and Ø 850mm)
Cables max Ø 50 mm
Industry - Distribution - Logistics :
Safety First
- A real crankcase, not just a simple bar, for protection but doesn't hinder either: when open the work space is clear
- Crankcase on the gavette and on the cable drum (winding impossible in open position)
- The operator remains next to the machine, outside the danger zone between the unwinder drum and the machine
- Torque limiter (instant stop in the event of unwinding drum lockout)
- Gradual start
- Double synchronous "dead man" control
- Emergency stop
SEMI-AUTOMATIC CROSSWINDING version :

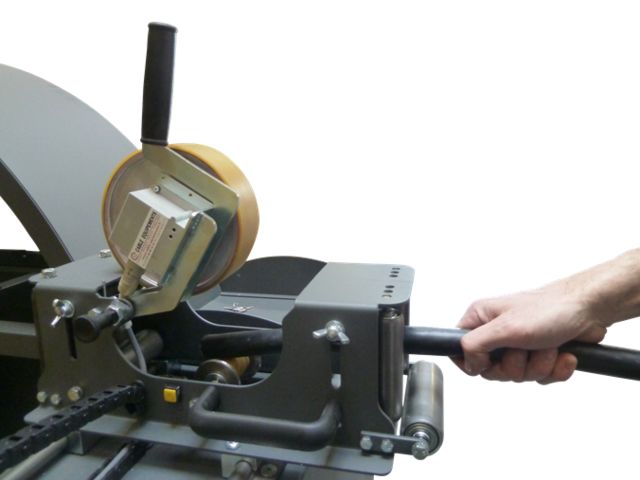

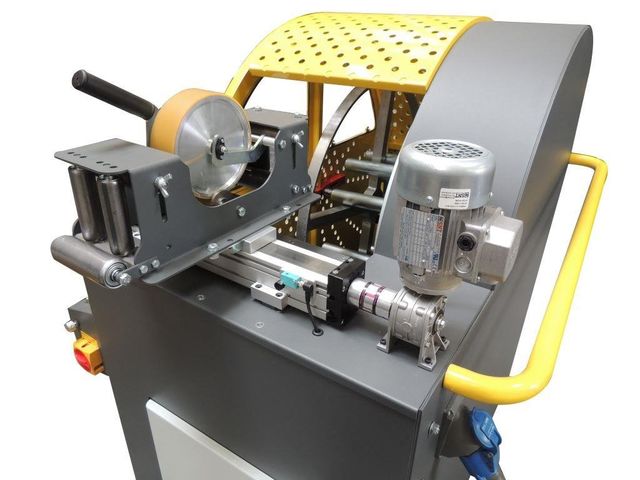

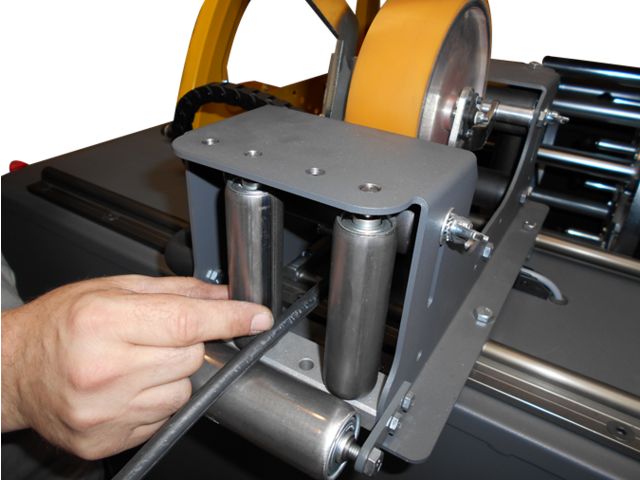

The measuring device carriage is motorized.
The carriage speed is locked to the winding and defined by a potentiometer.
Convenience option (operator presence mandatory).
Model without gavette : code E3040700
Model with gavette GR750 : code E3040705
