SAER

Waterpump Residential Application AP97 Electric centrifugal self priming pump (with open impeller)

Centrifugal pumps

Ask for a quote Receive Documentation Contact the supplier

APPLICATIONS

General water supply from rivers, streams, dirty water distribution, agricultural applications, building sites, dirty water disposal. The open impeller design allows water with a solid content to pass easily, whether sandy, muddy or particle laden.

CHARACTERISTICS

Pump body, impeller, pump support and inlet in cast iron. Non return valve in nitrile rubber and steel. Impeller cast iron. Mechanical seal in carbon ceramic (upon request tungsten/carbide). Rotor shaft in stainless steel fitted with seal bearings. Totally enclosed fan cooled motor (TEFC). Single phase motors with a built in thermal overload protection on request, the capacitor is permanently in circuit.

  • Motor protection to IP44 (available in IP55 upon request).
  • Winding Insulation to class F.
  • Standard Voltage: 230V-5OHz single phase 230V/400V-50 Hz three phase.
  • Other voltages and frequencies available upon request

    • OTHER PRODUCTS CENTRIFUGAL PUMPS FROM SAER

    Waterpump Residential Application M90-100-153-203 Electric Self Primingpumps "Jet" (with external ejector for deep well Ø4")'

    Waterpump Residential Application M90-100-153-203 Electric Self Primingpumps "Jet" (with external ejector for deep well Ø4")'

     Ask for a quote
    Waterpump Residential Application BP-CMK Electric Single Impeller Centrifugal pump

    Waterpump Residential Application BP-CMK Electric Single Impeller Centrifugal pump

     Ask for a quote
    Waterpump Residential Application FC Electric Centrifugal pump with two opposite impellers

    Waterpump Residential Application FC Electric Centrifugal pump with two opposite impellers

     Ask for a quote
    Waterpump Residential Application M94-97-99 Electric Self Primingpump "Jet" (with built-in ejector)

    Waterpump Residential Application M94-97-99 Electric Self Primingpump "Jet" (with built-in ejector)

     Ask for a quote

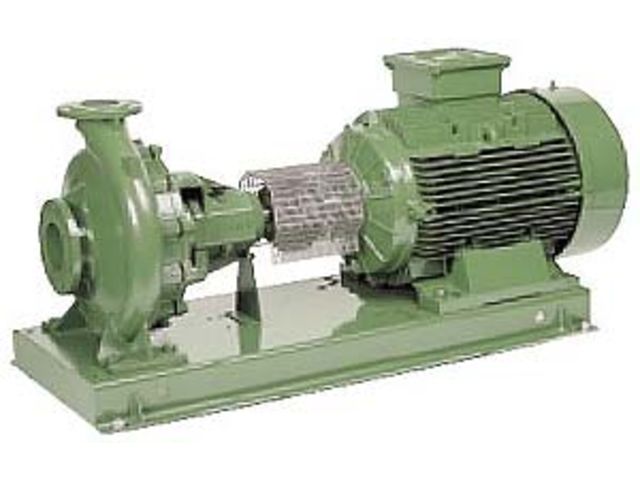

    Bareshaft end-suction Centrifugal pumps NCBZ-2P
