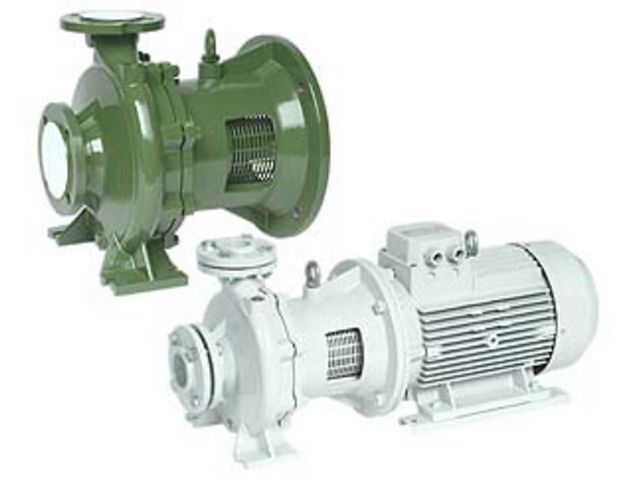

Waterpump Residential Application CM-CMP Electric Single Impeller Centrifugal pump

APPLICATIONS

Industrial water supply, pressurized water using pressure vessels (autoclaves), horticultural and agricultural irrigation, civil and domestic water transfer applications.

CHARACTERISTICS

Pump body and motor support in cast iron or cast aluminum alloy. Pressed brass impeller or thermoplastic resin. Mechanical seal in carbon/ceramic. Rotor shaft fitted with seal for life bearings. Totally enclosed fan cooled motor (TEFC).
Single phase motors with a built in thermal overload protection on request, the capacitor is permanently in circuit.

• Motor protection to IP44 (available in IP55 upon request).
• Winding Insulation to class B (for motors of size 63), F (for other sizes).
• Standard Voltage: 230V-50Hz sinqle phase, 230/400V- 50Hz three phase.
• Other voltages and frequencies available upon request.
