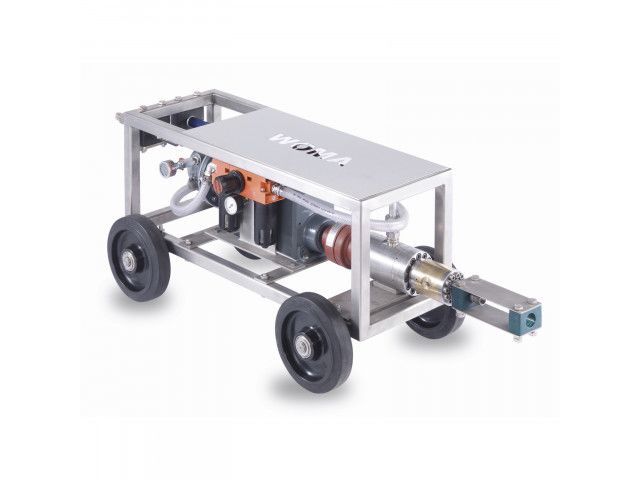

Water feeding unit - TubeMaster

This is especially suitable for tubes with non-linear geometries and diameters up to 500 mm. The reason for this is a rotating high-pressure hose connected to a whirl jet nozzle. TubeMaster continuously slides the hose into the tube to be cleaned. The torque protection prevents the high-pressure hose also being rotated in the depressurised state. Unique here: TubeMaster enables the withdrawal of the hose, even when the system is running.

Technical data
- Operating pressure (bar)max. 1400
- Max. flow volume (l/min)180
- Inlet temperature (°C)max. 60
- Rotational speed (rpm)16 - 144
- Air consumption (m³/h)65
- Air pressure (bar)6
- Weight (kg)124
- Dimensions (L × W × H) (mm)120 x 80 x 60
