Vertical Oven with baskets for Curing. Production of gasoline tanks.

Vertical Oven

Compact pressure sensor with the Contite measuring cell for hydrostatic level measurement. The compact Deltapilot FMB50 transmitter with the condensate resistant Contite measuring cell is typically...

“ Compact Oven. Low footprint. Optimized acces to all zone of the oven. Quick and easy to move, to install and to set up. Full mastership of the oven by the customer within a short time. ”

Ask for a quote

Presentation

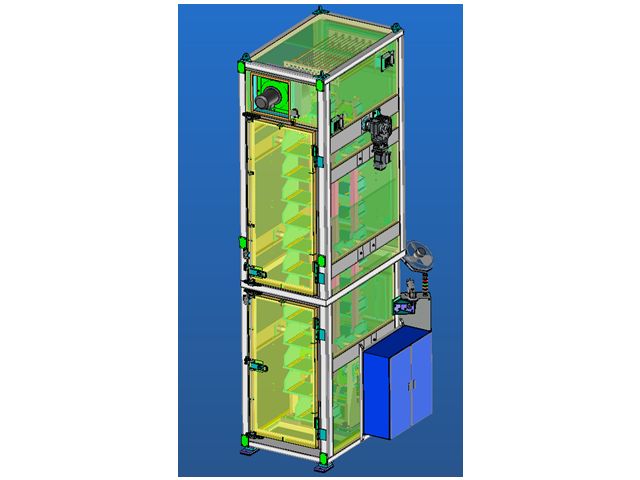

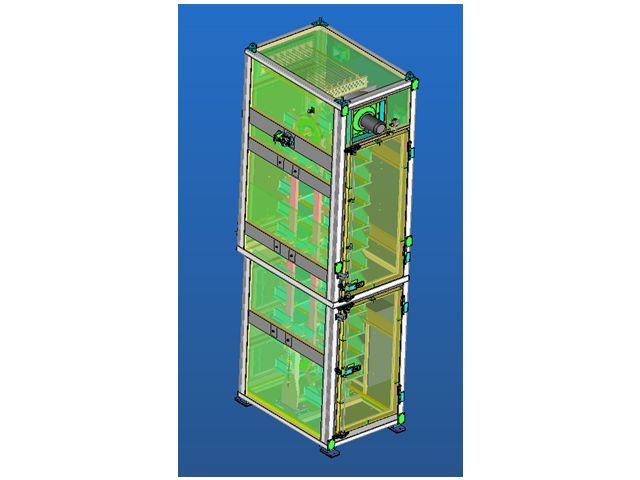

The paternoster oven is a customised solution. It has a chain conveyor to which swinging plates (also called baskets) are attached.
The baskets transport the parts in a closed circuit (loop, paternoster).
The size and number of the baskets depend on the specifics of the parts to be treated and
of the thermal process based on the technical data provided by the customer.

The paternoster oven is a compact solution.
It is ideal when an oven has to be inserted into an existing production line
which has limited space. Versatile, it can be used for
all thermal processes up to a temperature of approx. 150 °C.

Example:
- Paternoster oven for preheating
- Paternoster oven for annealing
- Paternoster oven for polymerisation
- Paternoster oven for stress relief
- Paternoster oven for drying

Data for the example of the paternoster oven:
-overall dimensions (without control cabinet) 1.90 m x 1.25 m x 5.60 m
-25 baskets totalling 400 x 400 mm
-weight 1.5 t
-Monobloc
-One heating zone
-curing of thermoplastic components for car fuel tanks
-Working temperature 100 °C
-Temperature not above 120 °C
-Installed power (heating rack) 40 kW
-Volume flow of convection air, max. 6000 m3/h

Technical features

Oven designed and realized according to customer specific needs Quantity and size of baskets can be customized For all thermal processes below 150 °C Loading and unloading at one spot, at the front, at 2 basket levels One block Easy to connect and to start Customer will quickly be able to get to know, to use and to maintain the oven.
