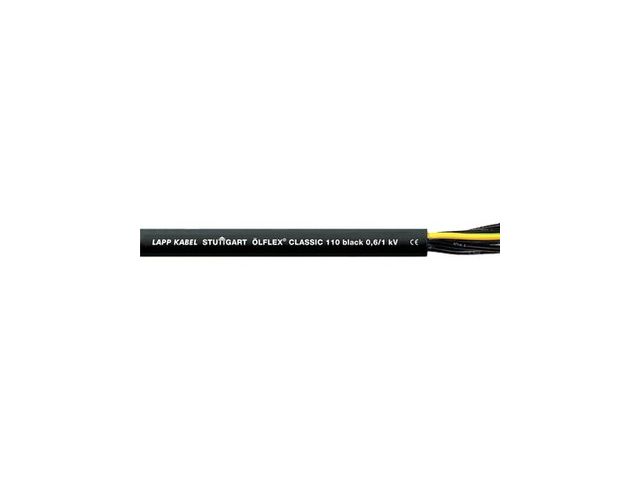

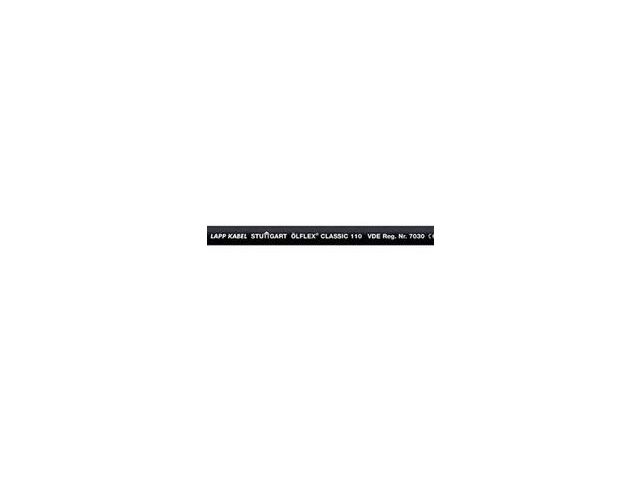

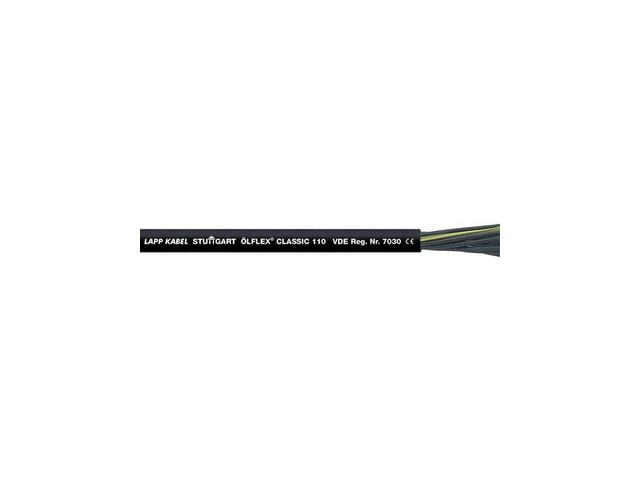

VDE-registered oil-resistant PVC control cable with black outer sheath for a wide range of applications
ÖLFLEX® CLASSIC 110 BK - PVC control cable, VDE registered, oil resistant, flexible and UV-resistant for various applications, 300/500V, also for YSLY or YY
-
CPR: Article number choice under www.lappkabel.com/cpr
-
With black outer sheath, UV-resistant
-
VDE certificate of conformity with
factory surveillance
Benefits
-
Suitable for outdoor applications
-
Wide choice of standardized lengths and individual cuts
Application range
-
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
-
Dry or damp rooms that are subject to medium mechanical loads
-
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
-
In power chains for a travelling distance up to 5 m and 0,2 ... 1 million bending cycles, for following dimensions: 0,5 to 2.5mm² and 2 to 7 conductors
-
Suitable for outdoor applications
Product features
-
Flame-retardant according IEC 60332-1-2
-
Good chemical resistance, see catalogue appendix T1
-
Oil-resistant according to DIN EN 50290-2-22 (TM54)
-
UV and weather-resistant according to ISO 4892-2
Norm references / Approvals
-
VDE reg. no. 7030 for the following sizes:up to 2.5 mm²: 2 - 65 coresfrom 4 mm²: 2 - 7 coresfrom 25 mm²: 2 - 5 cores
Product Make-up
-
Fine-wire strand made of bare copper wires
-
PVC insulation LAPP P8/1
-
Cores twisted in layers
-
PVC outer sheath, black (RAL 9005)
