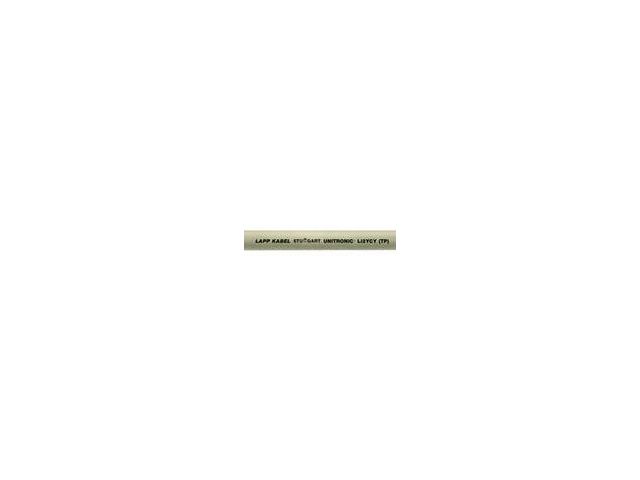

Screened data transmission cable mit PE core insulation | UNITRONIC® Li2YCY (TP)

Cables

Ask for a quote

Presentation

UNITRONIC® Li2YCY (TP): Low-frequency low-capacitance screened PVC data cable with DIN 47100 coded Twisted PE single core pairs, RS422/ RS485 interface wiring

Cables for RS485/RS422

Benefits

Overall braid minimises electrical
interference
Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)

Application range

Particularly suitable for wiring data systems with transmission rates up to 10 Megabits per second, and is qualified for the RS422 and RS485 interfaces.
For fixed and limited flexible installation
Can be used in dry or damp rooms
Signal-, control- and measuring cable,for transmission of low, sensitive signals and high bit rates
UNITRONIC^®
Li2YCYv (TP) with its reinforced, nominal/ minimum average wall thickness of at least 1.8 mm of the black outer sheath (Yv) is designed for indoor and outdoor use as well as for applications where a reinforced outer sheath may turn out to be advantageous

Product features

Flame-retardant according IEC 60332-1-2

Norm references / Approvals

Based on VDE 0812

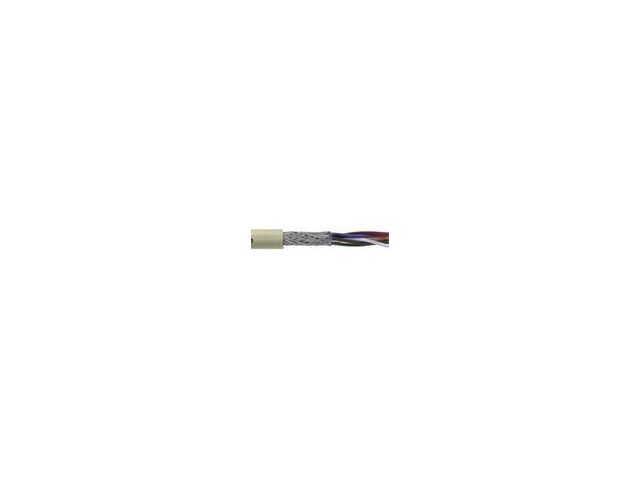

Product Make-up

7-wire bare stranded copper conductor
Core insulation made of polyethylene (PE)
TP structure
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)
