Variable displacement axial piston pumps type V30

Variable displacement axial piston pumps type V30 - HAWE OTELEC

Variable displacement axial piston pumps type V30 - Other hydraulic pumps

Variable displacement axial piston pumps type V30 - produit présenté par HAWE OTELEC

Variable displacement axial piston pumps type V30

Other hydraulic pumps

Ask for a quote

Presentation

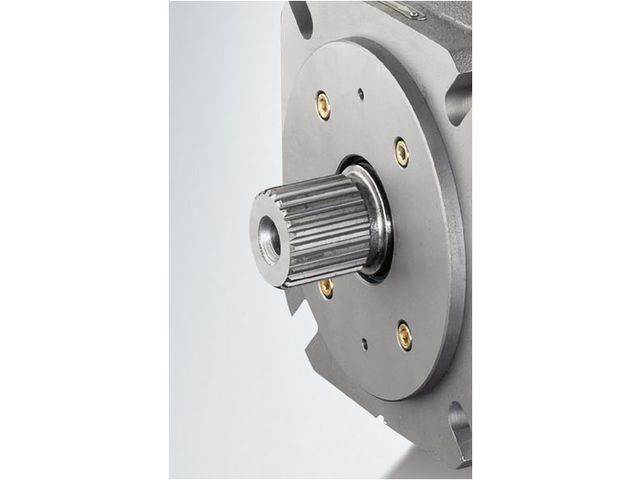

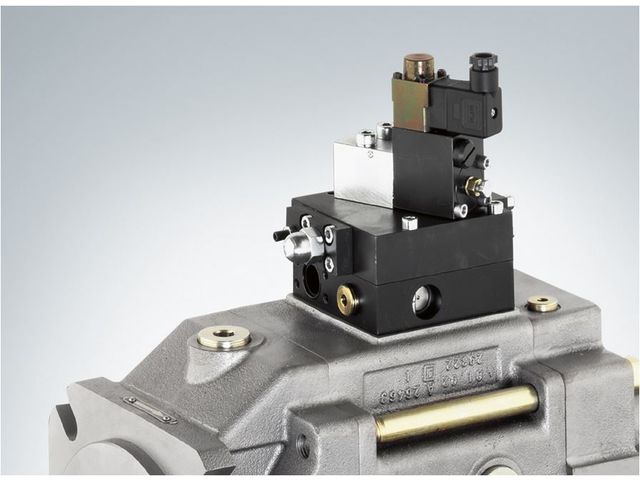

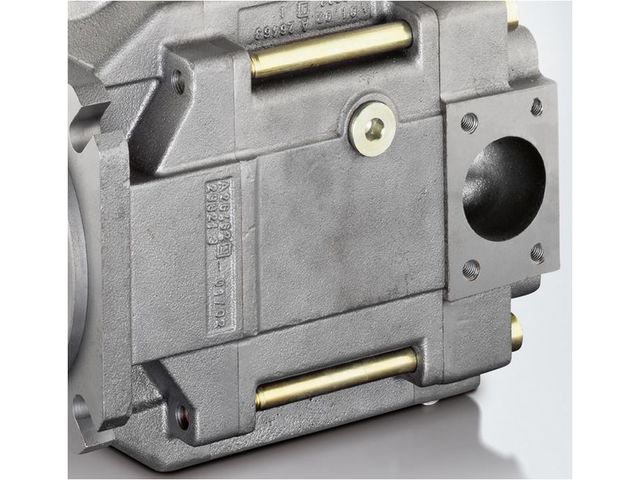

The InLine variable displacement pump type V30D and V30E work according to the swash plate principle and are intended for open circuit operation in industrial and mobile hydraulics. There is also an option for a thru-shaft for flange mounting additional variable and fixed displacement pumps. Type V30E is intended as successor of V30D, where the completely new development allowed realizing state of the art pump design. This concerns primarily the optimization of self-suction speed rating, minimized noise level, weight, and pulsation as well as increased service life. These pumps are suited for a wide range of applications due to their low running noise and various pump controllers. Hydraulic circuits where several outlet flows are required can be fed either by one individual pump or a multiple pump. Main benefit of these pumps are the sturdy design, the good performance /weight ratio, long service life due to oversized bearings, and the swash plate angle indicator.
