InLine variable displacement axial piston pump type V60N

Other hydraulic pumps

Ask for a quote

Presentation

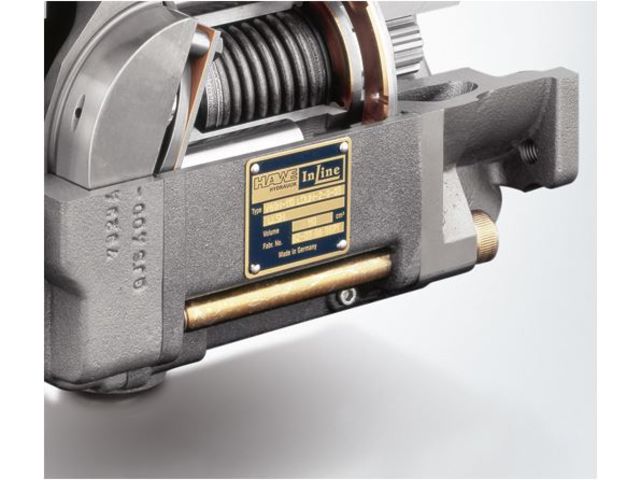

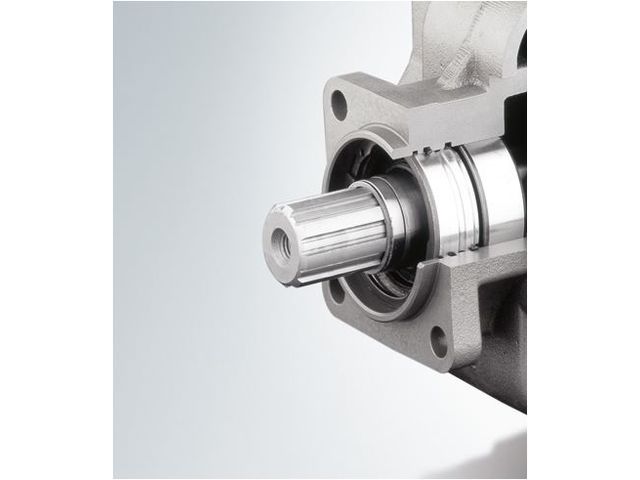

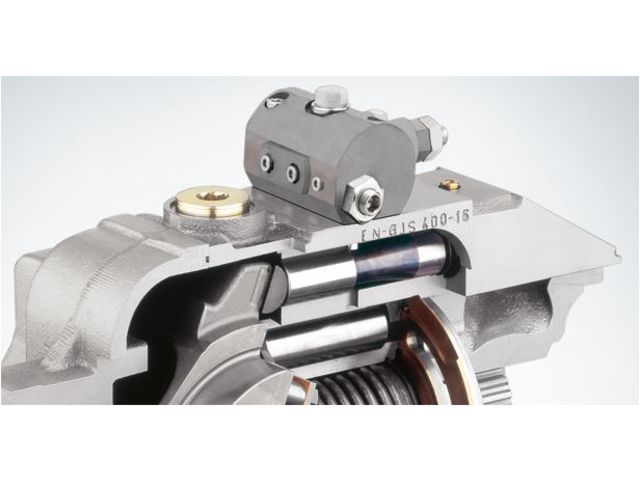

The Inline variable displacement pump type V60N works according to the swash plate principle usually driven via the ancillary drive. It is intended for open circuit operation in mobile hydraulics. In optional thru shaft enables direct mounting of additional variable displacement pumps or a feed pump. These pumps are suited for a wide range of applications due to their low running noise and various pump controllers. The direct mounting at the gear box is either via a SAE-flange or a flange conforming ISO 7653. The flange area at the suction port enables optimized hose connection with little back pressure. Main benefits of these pumps are the sturdy design, the good performance/weight ratio and long service life due to oversized bearings.
