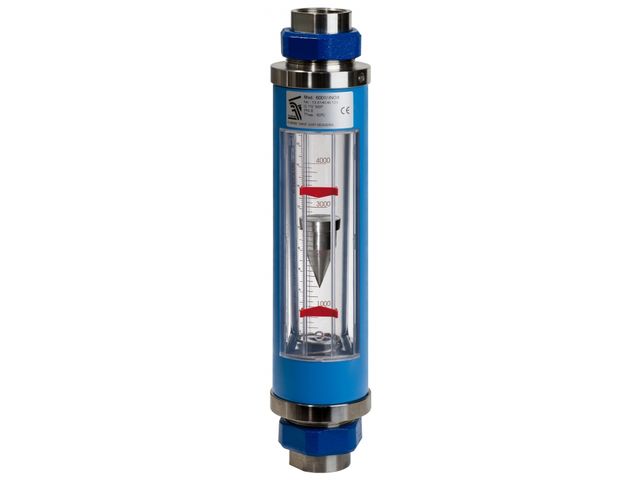

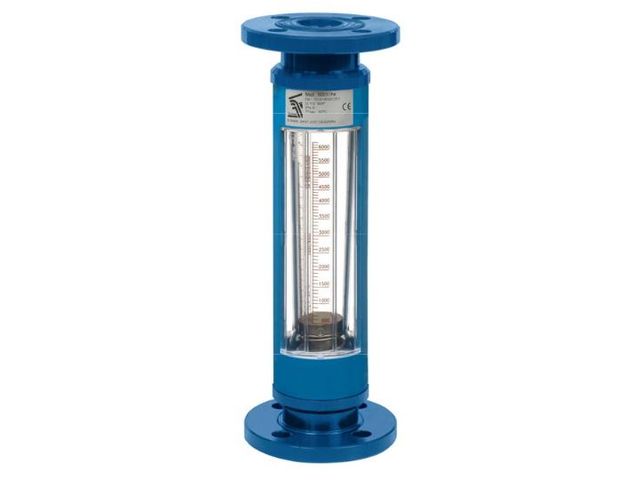

Variable area flowmeters Series 6000

Floater fitted flow meter

Ask for a quote

Presentation

Variable area flowmeters with glass tube. Easy installation without straight pipe run required and protected against accidental breakage. Application areas: Suitable for all kind of industries for flow measuring. Technical specifications:

Measuring ranges:

2,5 l/h … 40 m3/h H2O
40 Nl/h … 1200 Nm3/h air

Accuracy:

+-1,6% f.s.

Connections:

DIN DN15 … DN80 flanges
Threaded fittings from ½” … 3” BSP
PVC solvent weld socket fittings
SS fittings for welding, others on request

Materials:

Flow tubes: borosilicate glass, length 300 mm
Wetted parts: Coated steel, EN 1.4404 (SS316L), PVC, PP, PTFE

Options:

1 or 2 adjustable switches (reed switch, micro-switch or inductive sensor)
4-20 mA transmitter (max. resolution 18 points)
HART ™ protocol, Profibus, Fieldbus on request

Technical features

Download the complete technical features
