Float flowmeters | SELLA

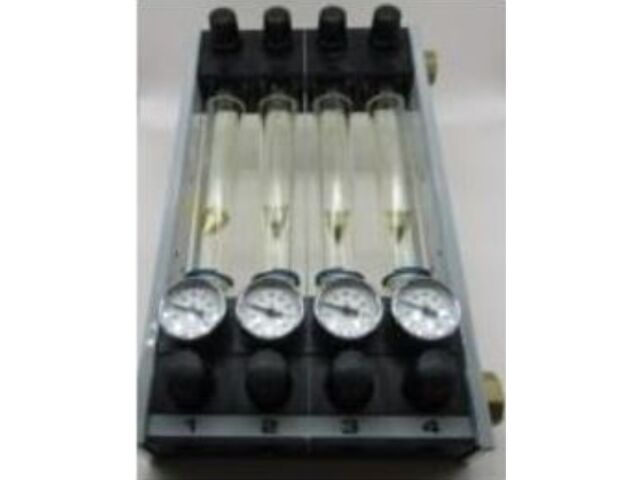

Floater fitted flow meter

“ Our flowmeters are available with 1 to 12 zones. ”

Ask for a quote

Presentation

SELLA brand float flowmeters are offered by POLYMIX to customers in a wide range of sectors who wish to measure and monitor flow and temperature.
Recommended for applications requiring high accuracy of water flow and temperature, these flowmeters are available in 4 types:

Model C: the most basic flow controller,
RT model: flow controller with temperature indication,
RMT model: flow controller with temperature indication and distribution manifold with manual valve, connections pointing downwards.
RWT model: same as RMT model, but pipe connections point upwards

Easy to integrate into injection molding machines or extruders, these flowmeters feature a compact, robust design for use in the 50 to 2750 Lt/h range.

Technical features

Flow and temperature measurement and monitoring Manual shut-off valve in supply and return lines (for RT type) Different measuring ranges can be selected on this type of water flowmeter by changing the float or the tube. For hot water applications up to 80° C This peripheral equipment is suitable for open and closed circuits Multi-circuit distribution system (up to 12 circuits) for Sella flowmeters with integrated flow and temperature measurement in each circuit Individual circuit control for manually-closed valves The Sella flowmeter is available with polycarbonate or nylon tubes. Water outlets are available in 4 diameters in straight and right-angle versions, interchangeable and, in combination with graduated tubes and floats, offer numerous possibilities for varying flow ranges Tubes can be easily dismantled without special tools for periodic cleaning
