EDWARDS SAS

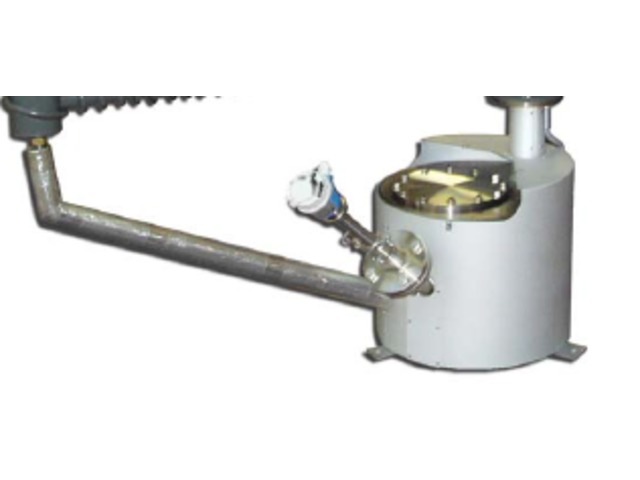

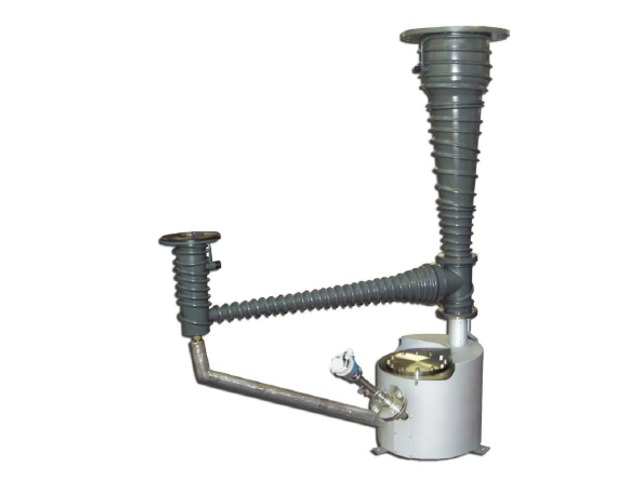

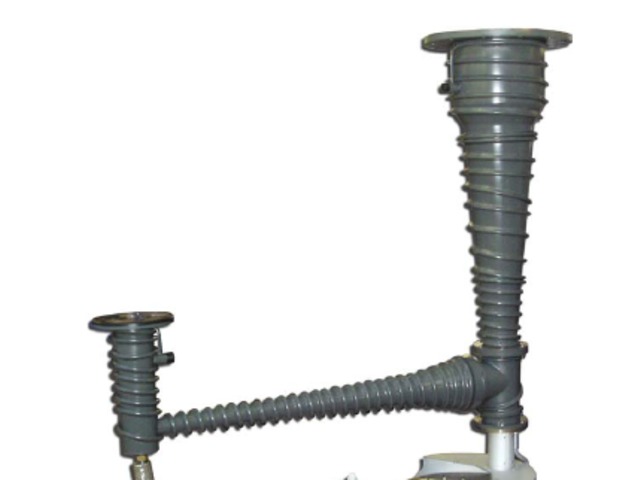

Vapour Booster Pumps : 18B4B, ISO, 415-440V

Vacuum pump

Ask for a quote Receive Documentation Contact the supplier

The Edwards 18B4B vapour booster pumps offer higher pumping speeds, of up to 6000 l s-1 at pressures intermediate between mechanical boosters and diffusion pumps. Vapor boosters from Edwards have been proven in the field for over 30 years.

With a constant program of updates and modernization, with input from OEM’s and end users, combined with inherent reliability, ease of use and tolerance to various inlet and exhaust pressures they have been used extensively in metallurgy and coating industries as well as other specialist applications.

Inlet connection : 8x11mm holes on 387.4 PCD (Edwards) / ANSI 12 inch / ISO320 Backing connection : 2 inch union (Edwards) / ANSI 4 inch / ISO160 Heater power : 6.0 kW / 8 hp Maximum heater input : 60 min Minimum water flow inlet : 375 @ 25 ⁰ C/1.6 US gal min-1 @25 ⁰ C Water block threaded hole : ½ inch BSP Weight : 165 kg / 365 lbs
Download the complete technical features

OTHER PRODUCTS VACUUM PUMP FROM EDWARDS SAS

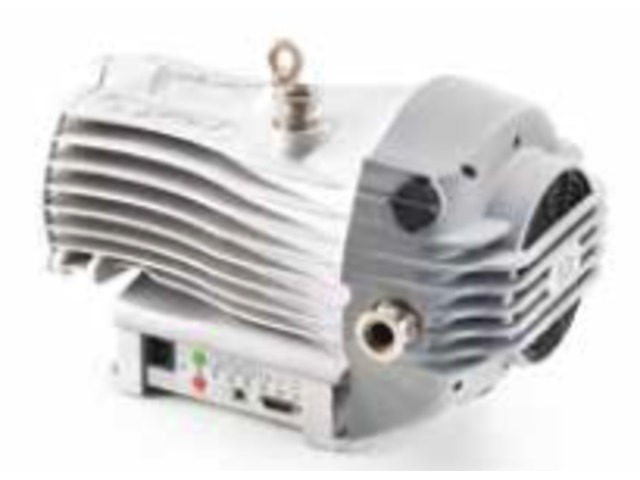

Dry scroll pump 1ph 50/60 Hz : nXDS20i
