Motorised roller conveyor

“ This conveyor can be integrated into an existing pallet handling line. It is also possible to integrate this conveyor in a new handling line. This roller conveyor is fully automated thanks to its electric motor. ”

Ask for a quote

Presentation

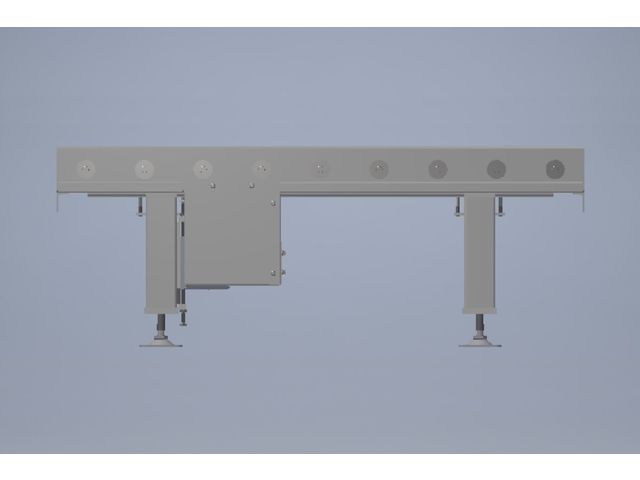

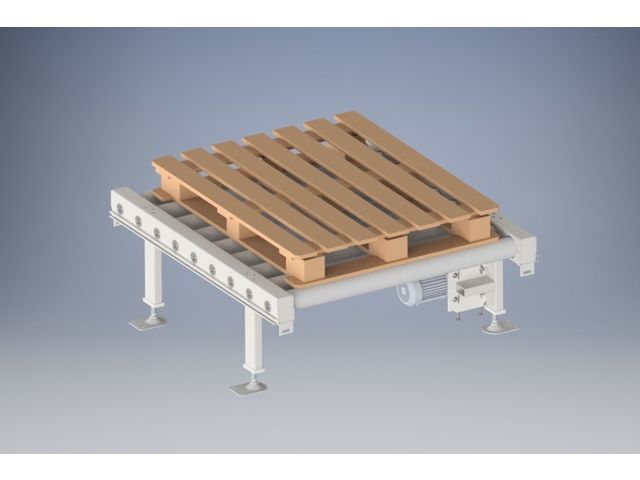

Motorized roller conveyor with frame, support legs adjustable in height by screw jack.

This roller conveyor is part of our range of standardized conveyors. It allows the movement/conveying of goods on pallets, up to 1200kg per pallet.
The roller conveyor can transport pallets of the following dimensions: 1200*1000mm

Dimensions of roller conveyor: 1350*900mm | height 500mm
It can carry one pallet at a time.

Frame :
- Metal frame made of folded plate thickness: 40/10th
- Supporting feet adjustable in height by screw jack

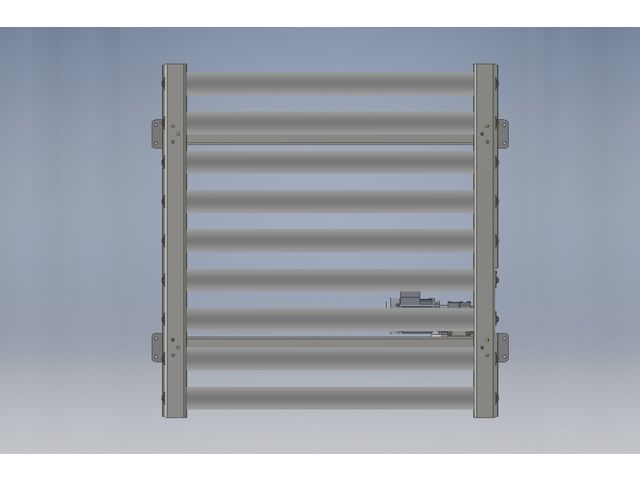

Rollers :

- Zinc plated steel Ø 89, thickness 3mm, axis Ø 20mm, pitch 151 mm
- Double sprockets with 15 teeth for 15,8mm pitch chain
- Height on rollers 500 mm +/- 50 mm

Drive :
- Fixed speed gear motor placed under the device, 230/400 V TRI (IP 55)
- Fixed speed: 12m/min

Electrical:
- Without electrical control equipment, except for the geared motor.

Load capacity per pallet : 1200 kg

REF : RC387047
