Pack conveyors

A conveyor of proven resistance capable of supporting heavy product flow (boxes, packs, racks…)

Pack conveyors are used for: boxes, packs, racks, punnets, and many more…

Features

• Modular stainless steel system
• Easily disassembled drive and return shafts
• Polyamide bearings lubricated for life or featuring a grease nipple
• Machined or moulded pinions in one or two parts
• Equipped with chains, modular belts, motorised rollers, free rollers… according to the conveyed products

Standard: Asynchronous SEW SA47/57/67 drive hollow shaft ≤0,55kW IE1

• Standard Efficiency, IE2
• High Efficiency ≥0,75kW IE2
• High Efficiency, IE3
• Premium Efficiency

Option: Synchronous SEW Movigear MGFA drive; 200Nm or 400Nm hollow shaft, IE4

• Super Premium Efficiency

Option: Synchronous Danfoss OGD drive; 1000Nm hollow shaft, IE4

• Super Premium Efficiency

• Straight, horizontal or inclined section conveyors for all types of modular chains and belts
• 500mm to 1000mm radius curves and 15° to 90° angles – for smooth and LBP chains
• Custom curves for modular belts

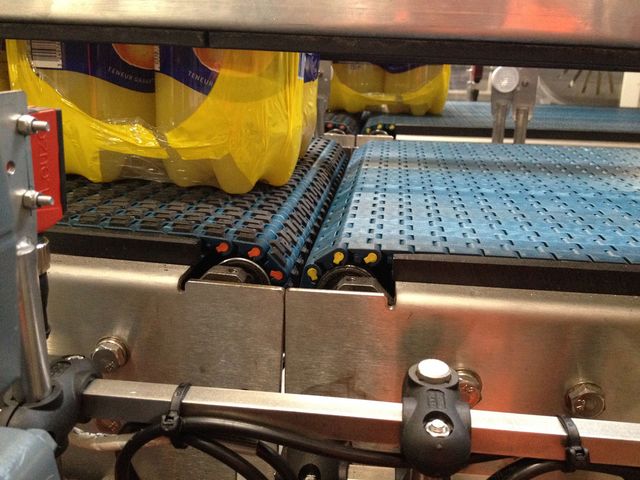

• End-to-end transfers with free transfer rollers
• End-to-end transfers with motorised transfer rollers

• End-to-end transfers with ø40mm nose
• End-to-end transfers with a motorised micro-chain (20mm dead zone)
• Diverging and converging modules with manual or automatic guiding
• Straight conveyors with ø16 rollers featuring 19,05mm pitches or ø30mm rollers featuring 38,1mm pitches

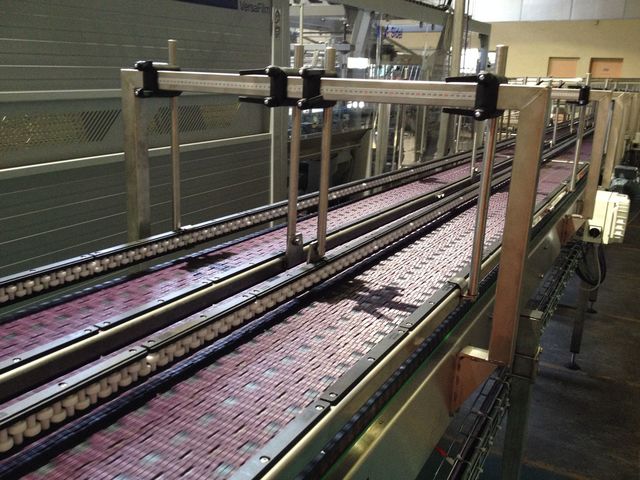

• Solid side guides
• Guiding profile designed according to the conveyed productproduit transporté
  • Fixed or adjustable
  • Manual or automatic adjustment
  • Manual or automatic adjustment guides, even in curves

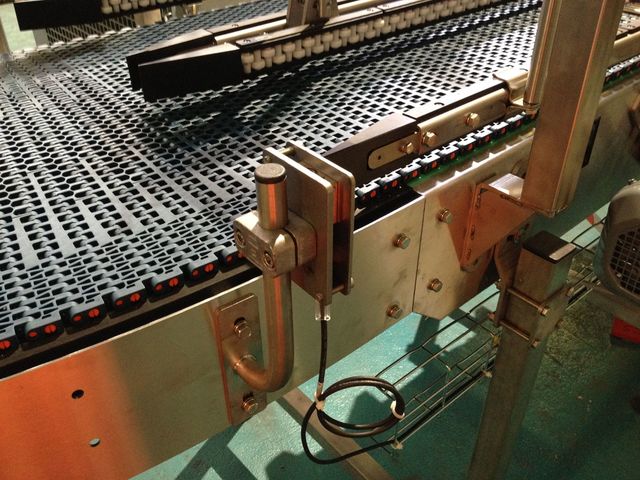

• Product detection system via reflex, ultrasonic or inductive cellsou inductive
  • Dividers
  • Distributors
• Turners per speed differential
• Fully stainless steel support stands (machine-welded)mécano soudé)
  • Tubes: ø 60mm
  • Adjustable stands ±50mm
• Rack storage facilities
