General data
sensing range: sd 20 ... 200 mm
scanning range close limit: Sdc 20 ... 200 mm
scanning range far limit: Sde 20 ... 200 mm
repeatability: < 0,5 mm
resolution: < 0,3 mm
adjustment: external Teach-in
sonic frequency: 380 kHz
response time: ton < 30 ms
release time: toff < 30 ms
alignment aid target display: flashing
light indicator: yellow LED / red LED
temperature: drift < 2% of distance to target So
Electrical data
voltage supply range: +Vs 15 ... 30 VDC
output current: < 20 mA
residual ripple: < 10% Vs
short circuit protection: yes
reverse polarity protection: yes
Mechanical data

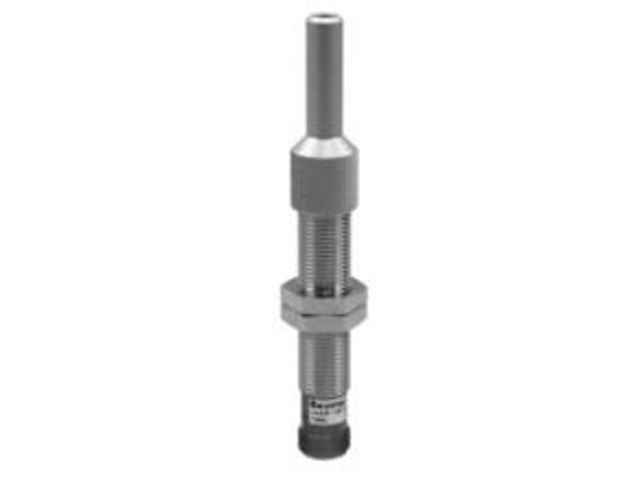

type: cylindrical
housing material: brass nickel plated
width / diameter: 12 mm
height / length: 70 mm
connection types: connector M12
Ambient conditions
operating temperature: -10 ... +60 °C
protection class: IP 67
