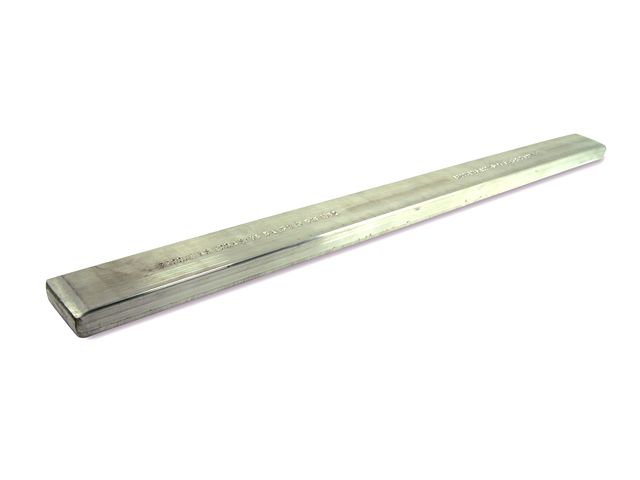

TIN BAR FOR ELECTRONIC WELDING (ECO 4)

Flow switch for liquids and gases. Easy installation and available for all flow directions. Without contact between the fluid and the reed detection systems, indicators or transmitters. Application...

“ - High and fast wetting properties. - Excellent reliability and solidity of the welded joint. - High electrical conductivity. - Excellent performance and compatibility with a wide range of flux technologies. ”

Ask for a quote

Presentation

ECO 4 (Sn96.5-Ag3-Cu0.5) is a high performance alloy composed of a tin-silver alloy.

copper and lead free.

.

The composition of this alloy complies with ISO standards

9453: 2015 (alloy 711) and RoHS compliant.

This makes our ECO 4 alloy useful in

different processes, including:

Wave, selective and dip welding.

Insertion and reworking of components for surface mount technology for the automotive electronics assembly industry.

TECHNICAL DATA - ECO 4
Melting point (ºC) 217/220
Density at 20 ° C (gcm-3) 7.38
Tensile strength (MPa) 49
Elongation (%) 19
Hardness (HB) 15

AVAILABLE FORMATS

Round rods 6x400 mm.

Square rods 4x9x400 mm.

Rectangular rods 12x24x400 mm.
