Thermal mass flow meter

Thermal flow meter

“ Wide measurement range High accuracy : 1% reading + 0.2% Full Scale Winner of 2014 Processing's Breakthrough Products Award! Winner of Flow Control’s 2014 Innovation Award! ”

Ask for a quote

Presentation

Thermal mass flow meter FT2A from FOX THERMAL INSTRUMENTS

The Fox Model FT2A, winner of both the 2014 Flow Control Innovation Award and the Processing Breakthrough Product Award, is the most widely versatile Thermal Gas Mass Flow Meter on the market today.

The Model FT2A has a large selection of communication protocol options available intrinsically (without any other equipment). Options include: BACnet MS/TP, RS485 Modbus RTU, Profibus-DP, DeviceNet, or Ethernet Modbus TCP.

The Model FT2A measures gas flow rate in standard units (SCFM, NM³/hr, LBS/HR, KG/HR & many more) without the need for temperature and pressure compensation. See the Features/Benefits section below to explore all that the FT2A can offer your application.

A free software tool – FT2A View™ - is available for the Model FT2A that allows the user to connect to and configure the FT2A using a PC or laptop.

Common Features for Fox Model FT2A Flow Meter:

Measures process gas flow rate/total and temperature
Standard USB port, optional BACnet MS/TP, RS485 Modbus, Profibus-DP, DeviceNet, or Ethernet Modbus TCP
Standard on-board display and configuration panel
Equipped with the Power Pro™ thermal mass flow sensor
One discrete output is programmable for either pulse (for totalizing flow) or alarms
One discrete input to reset total or select a different calibration on 2 gas curves

4 to 20 mA output proportional to mass flow rate
FM and FMc approved for Class I, II, III, Div 2, Groups A, B, C, D, E, F, G, T4 hazardous locations; NEMA 4X approved; Remote NEMA 4X electronics enclosure with explosion proof sensor j-box.
CE Approved
NIST traceable calibration
Wide measurement range
1% R + 0.2% FS flow accuracy
24 VDC or optional 100 to 240VAC in local or remote enclosures

Optional items available for the Model FT2A Flow Meter:

Talk with our application specialist or a rep near you for sizing and materials requirements

Insertion probe or inline models
AC or DC power options

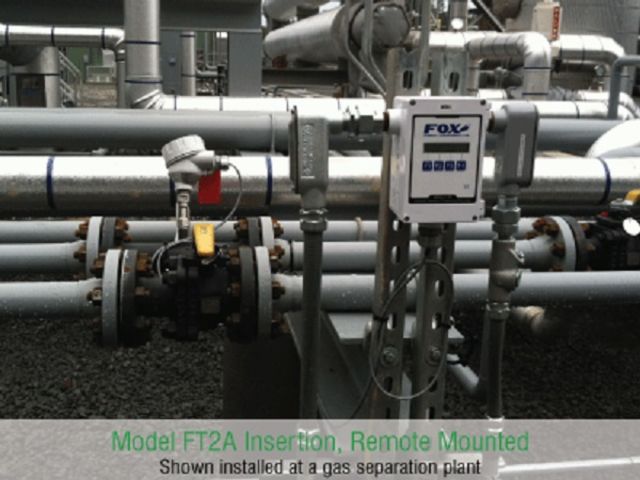

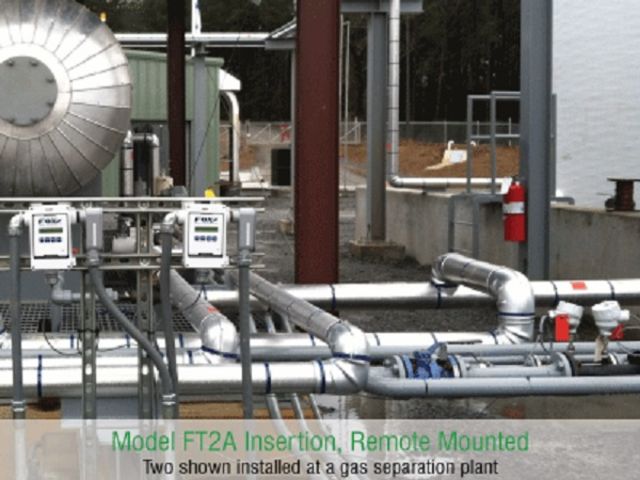

Remote models available with remote J-box
Cable for remote
Remote Mounting Kit for remote enclosures
Enclosure elbow kit (for use in vertical pipe installations)
Retractors
Non-resettable Totalizer
Extra Instruction Manual
USB Cable
Teflon Ferrule Kit
Stainless Steel Tags
Certificate of Conformance
Certificate of Origin
Flow meter cleaned and bagged for Oxygen service

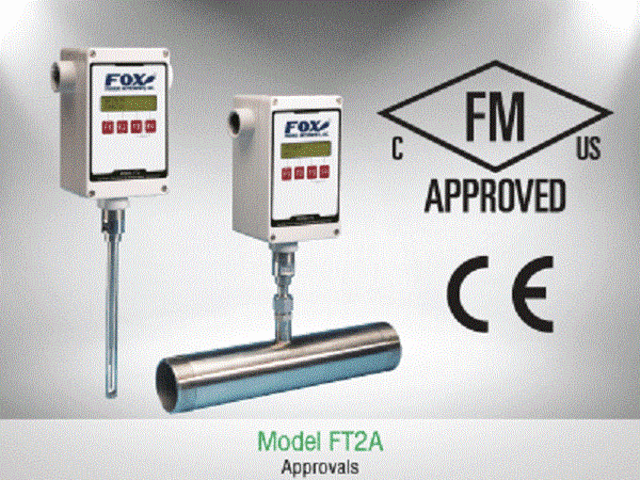

FT2A Approvals

CE: Approved

EMC Directive; 2014/108/EC
Emissions and Immunity Testing: EN61326-1:2008
Pressure Equipment Directive: 97/23/EC
Weld Testing: EN ISO 15614-1 and EN ISO 9606-1, ASME B31.3

Note: the EU Pressure Equipment Directive (PED) requires that the minimum abient and fluid temperature rating for carbon steel flow bodies not be below -29°C.

FM (U.S.) and FMc (Canada): Approved

Class I, II, III, Division 2, Groups A, B, C, D, E, F, G, T4A hazardous locations.
Remote NEMA 4X electronics enclosure with explosion-proof sensor j-box

Technical features

1% reading + 0.2% Full Scale flow accuracy 24 VDC or optional 100 to 240VAC in local or remote enclosures Wide measurement range Flow Repeatability: ± 0.2% of full scale NIST traceable calibration & CE Approved 4 to 20 mA output proportional to mass flow rate FM and FMc approved for Class I, II, III, Div 2, Groups A, B, C, D, E, F, G, T4 hazardous locations; NEMA 4X approved; Remote NEMA 4X electronics enclosure with explosion proof sensor j-box. Standard USB port, optional BACnet MS/TP, RS485 Modbus, Profibus-DP, DeviceNet, or Ethernet Modbus TCP Quick Flow Response Time: 0.9 seconds (one time constant) Temperature Accuracy: ± 1.8° F (± 1.0° C) over -40 to 250° F (-40 to 121° C); ± 3.6° F (± 2.0° C) over 250 to 650° F (121 to 343° C). Minimum velocity 60 SFPM.

Download the complete technical features
