Insertion thermal mass flowmeter for gas or liquids

Thermal flow meter

“  Flow Rate Measurement of Gases & Liquids  Corrosion Resistant Materials Available such as Hastelloy, Monel, Inconel, and others  Single Piece Welded Construction  Redundant Non-Wetted Sensors  10:1 Turndown or greater. Multiple Ranges Available.  No Moving Parts  Negligible Pressure Drop  Compression Packing Gland or Flange Process Connection  Available for line sizes 1.5” and greater  NIST Traceable Calibration ”

Ask for a quote

Presentation

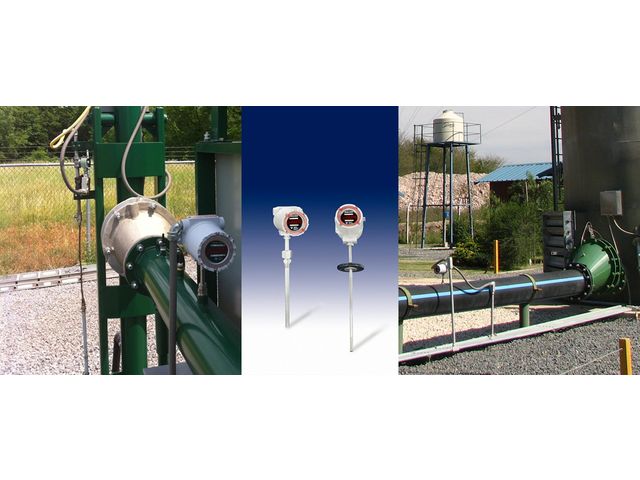

Our Model # 62-9 Thermal Mass Flow Meter is our most versatile flow measurement instrument. It is easily placed into both liquid and gas applications for accurate measurement of your process. It is availa-ble with our Model # 9500P Integral Electronics al-lowing the end user to view Flow Rate and Totalized Flow Rate on a bright LED display.
Custom Length probes are available. Process con-nections such as Hot Tap, Tri-Clover, and Welded Union Connection for High Pressure applications.

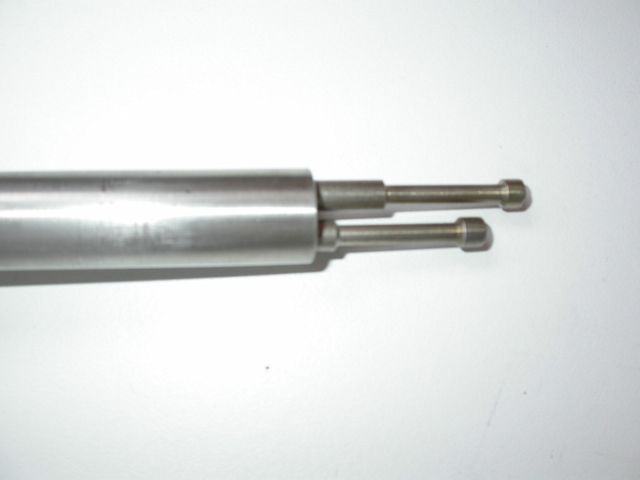

Our Dual Tip Model # 62-9DT is available for line sizes as small as 1½”, High Temperatures, and wide flow ranges.

Technical features

Accuracy: ±0.50% of Full Scale or 2% of reading. Process Fluid Temperature Span ±50°F Repeatability: ± .20% of Rate Turndown 10:1 Std. 1000:1 Application Dependent Response Time: Gases—1 to 2 Seconds Liquids— < 500ms. Pressure Rating 0 –1200 psig (Std). Mass Flowrates Gas 40—50,000 SFPM Liquid .02—20 FPS Temperature -40—350°F (Std) , -40—175°C (Std.) Optional High Temps to 500°F (260°C) Power 120 / 240 VAC, 50/60 Hz 24 VDC, 1 Amp Output 4-20MADC Flow (Std.) Pulse Output (Opt.) 4-20 MA Process Fluid Temp. (Opt.) 0-5 VDC, 0-10 VDC Optional Modbus RS 485, Hart Communication (Opt.) Remote Up to 4000’. Signal Cable- 18 Gauge, 2 Pair with shield
