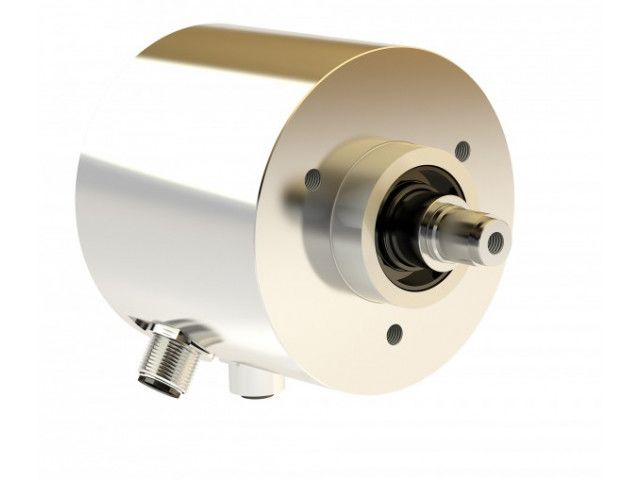

Switching cam encoder NOCI79/S3 SIL2

Definition: Opening electric tube furnace for all applications. Construction: Robust construction made of bent plate. Insulation: Multilayer insulation. Interior in ceramic fibre and refractory...

Ask for a quote

Presentation

This involves a play-free electronic switching cam encoder (abbreviated to: NOCI) with a maximum of four galvanically separated1) SIL2 switching outputs that can be set by the customer, and which are activated or deactivated depending on the respective position of the drive shaft. A parameterisable multiturn absolute encoder with incremental interface as well as the four switching outputs are integrated in the compact housing. The switching outputs can be preset. A special shaft design appropriate to the play-compensating measurement gear ZRS is available. The supply voltage, incremental signal and switching contacts are each galvanically separated from one another

Technical features

Interface: CANopen, Relais Inkremental or absolute: Incremental Design: 79mm Special feature: SIL2/PLd Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Number of switching outputs: Up to 4 safe switching outputs (SIL2) Resolution: 512 Impulse Measuring range: 16 revolutions, 256 revolutions, 4096 revolutions Profile: S3 Safety SIL2 Ausführung Output/signal level: HTL-definition, TTL-definition

Download the complete technical features
