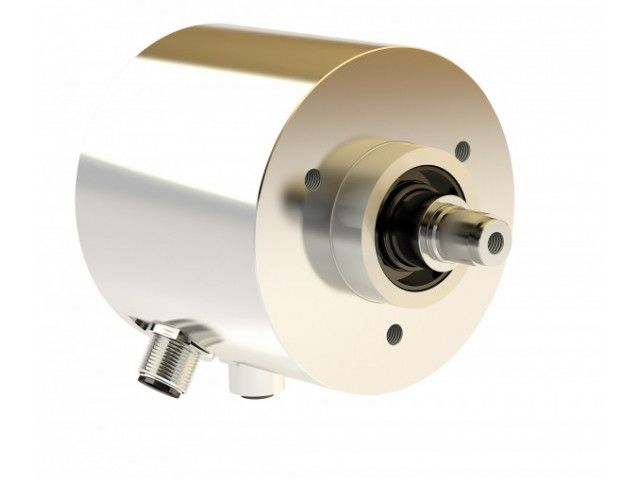

Switching cam encoder NOCE79/S3 SIL2

Relays

Ask for a quote

Presentation

This involves a play-free electronic switching cam encoder (abbreviated to: NOCE) with a maximum of four galvanically separated SIL2 switching outputs that can be set by the customer, and which are activated or deactivated depending on the respective position of the drive shaft. A parameterisable multiturn absolute encoder with SSI interface and the switching cam encoder PCB with separate controller are integrated in the compact housing. The SSI interface can be preset, the encoding direction is adjustable and the switching outputs can be preset. A special shaft design appropriate to the play-compensating measurement gear ZRS is available. The supply voltage, SSI signal and switching contacts are each galvanically separated from one another.

Technical features

Interface: CANopen, Relais, SSI Inkremental or absolute: Absolute Design: 79mm Special feature: SIL2/PLd Number of switching outputs: Up to 4 safe switching outputs (SIL2) Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Resolution: 4096 steps/360°. Also possible 8192, 16384 and 32768 steps/360° Code type: Binary, Gray Measuring range: 16 revolutions, 256 revolutions, 4096 revolutions Profile: S3 Safety SIL2
