Submerged arc equipment LT-7 TRACTOR

Welding trolley

Ask for a quote

Presentation

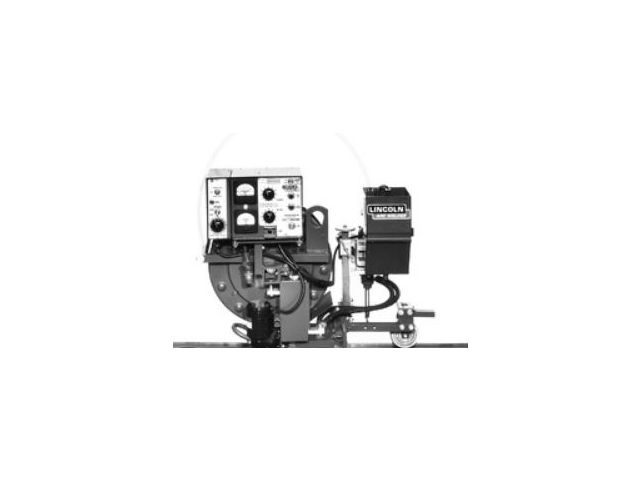

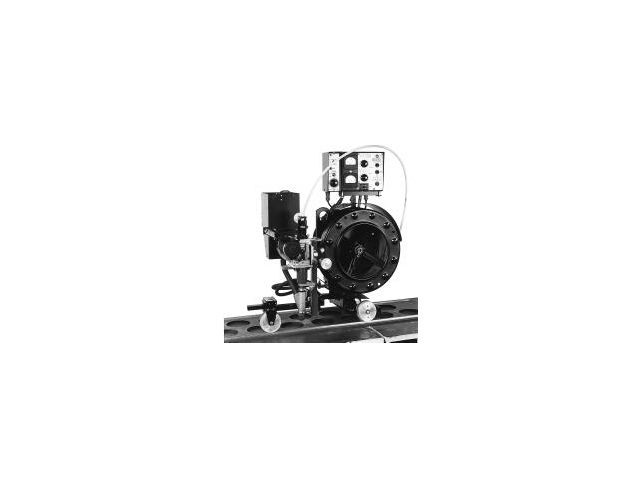

The LT-7 Tractor is a self-propelled mechanized wire feeder, designed for the submerged arc process with track system capabilities. It is self-guiding and easy to operate – only one operator is usually required. It is designed to be used with a variety of Lincoln DC constant voltage and constant current power sources.

Feeds 2.4-4.8mm solid wires - from 2.5-10.2m/min)wire feed speed.
Calibrated tractor drive - adjusts travel speeds 0.12-1.8 m/min.
Vertical head lift adjuster - for adjusting electrical stick-out from 12.7-127.0 mm.
Control box can be mounted – either left or right, eliminating the need to return to the power source for routine procedure changes
Welds butts - horizontal fillet and lap joints to the left or right side of the tractor frame for convenience.

Technical features

Download the complete technical features
